Choose this device to control your Extron SMX Multi Matrix router.
Settings:
| Name | User-friendly name |
|---|---|
| Enable | Activate to enable the device |
| Run at startup | Activate to run the device at Kinetic startup |
| IP | Enter your device ip address . Your device and Kinetic Designer need to be in the same subnet |
| Port | Choose the correct TCP/IP port* |
| DVI plane | set DVI plane number |
| SDI plane | set SDI plane number |
| HDMI plane | set HDMI plates number |
| AUX plane | set AUX plates number |

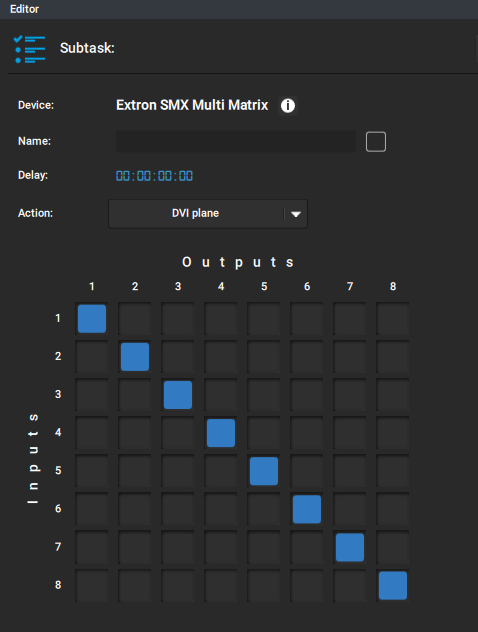

Task action:
| Enable device | enable the device |
|---|---|
| Disable device | disable the device |
| DVI plane | choose DVI routing |
| SDI plane | choose SDI routing |
| HDMI plane | choose HDMI routing |
| AUX plane | choose AUX routing |
Task trigger:
N/A
Digimap trigger:
N/A
Graph:
N/A
User interface:
N/A
Device information:
Go to the manufacturer website for more information.
