This tab lists any annotations that were created in the current 3D scene.
These annotations are not present in the Hierarchy tab.
Annotations can be created from within the 3D Viewer panel by using the Annotations
tool.
When using this tool, clicking anywhere in the 3D View will place an annotation at that position in the 3D space.
Properties

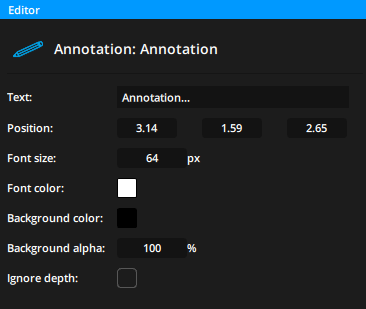

Once an annotation has been created in the 3D Viewer panel, it appears in the Annotations and when selected, the following options are available in the Editor panel:
| Parameter | Description |
|---|---|
| Text | The text to display in the annotation |
| Font size | Size of the font used in the label |
| Font color | Color of the font used in the label |
| Background color | Color of the label’s background |
| Background alpha | Transparency value for the label |
| Ignore depth | Toggle to ignore depth values when drawing the annotation. This draws the annotation above other objects when active. |
