Select this device to control Barco RLM-series video projectors.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Barco RLM | User-friendly name. |
| Enable | ON | Toggle to enable/disable the device. |
| Run at startup | ON | Toggle to enable the device when Kinetic Designer is launched. |
| IP | [empty] | Set the IP address of your device. Your device and Kinetic Designer should be on the same subnet. |
| Port | 43680 | TCP/IP port used by the device. |

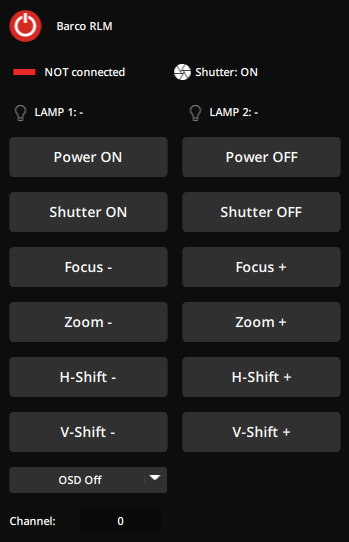

Manual controls of the Barco RLM device in the Editor panel.Task action
| Action | Description |
|---|---|
| Enable device | Enable the device |
| Disable device | Disable the device |
| Power On | Send Barco power on command |
| Power Off | Send Barco power off command |
| Lamp Mode | Select the lamp mode from the list |
| Channel | Select channel number |
| Shutter On | Send Barco shutter on command |
| Shutter Off | Send Barco shutter off command |
| Mute On | Send Barco mute on command |
| Mute Off | Send Barco mute off command |
| Test Pattern | Select a test pattern from the list |
| OSD On | Send Barco OSD on command |
| OSD Off | Send Barco OSD off command |
| Projection Front | Select projection front mode |
| Projection Rear | Select projection rear mode |
| Projection Floor | Select projection floor mode |
| Projection Ceiling | Select projection ceiling mode |
| SetLampPower | Set lamp power value |
| LoadLensMemory | Recall lens memory value |
| SaveLensMemory | Save lens memory value |
| SetLampscCount | Set lamps count value |
| Focus increase | Increase focus value |
| Focus decrease | Decrease focus value |
| Zoom increase | Increase zoom value |
| Zoom decrease | Decrease zoom value |
| Horizontal Shift increase | Increase horizontal shift value |
| Horizontal Shift decrease | Decrease horizontal shift value |
| Vertical Shift increase | Increase vertical shift value |
| Vertical Shift decrease | Decrease vertical shift value |
Task Trigger
This device has no actions that can trigger a Task.
Digimap Trigger
This device cannot be used as a Digimap trigger.
Graph
This device has no properties that can be read or written from a Graph.
User Interface
When drag & dropped into a UI Panel the following commands are available:
Manual controls of the Barco RLM device in a UI panel.Device Information
Check Barco’s website for more information on their video projectors.
