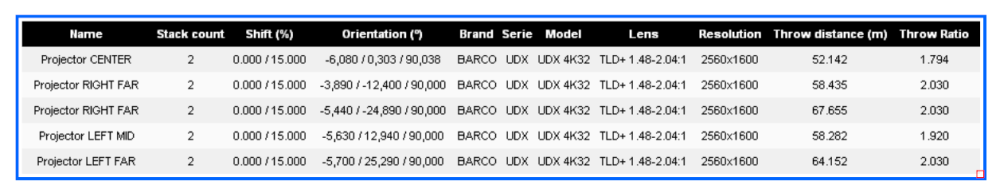

VP Sheet

Settings

General

The Resize to content button can be used to automatically resize the VP sheet element to fit and display a default standard size for all selected header properties (columns) and projectors (lines)+.

Header

This tab enables you to select which properties of the projector sheet will be displayed in the header.

Each property will become a column in a horizontal VP sheet and a line in a vertical VP sheet.

The list of selected headers can be freely re-organized in the Selected headers section.

To add headers, drag & drop them from the Available headers section on the left to the Selected headers section on the right.

The default displayed headers are:

• Name
• Orientation
• Shift
• Resolution
• Throw disance


Available headers are:

• Brand
• Lux
• Plane size
• Pixel size
• Lens
• Lumens
• Stack count
• Model
• Serie
• Aspect
• Throw Ratio
• Position


The buttons Add all headers and Withdraw all headers are convenient for adding/removing all available projector properties to/from the VP sheet’s header in one click.

Projector

The projector tab enables you to select which projectors will be displayed in the VP Sheet.

Each projector will become a line in a horizontal VP Sheet and a column in a vertical VP Sheet.

With the Scene parameter you can select from which 3D scene to display the projectors.

To add projectors, drag & drop them from the Available projectors section on the left to the Selected projectors on the right.

The buttons Add all projectors and Withdraw all projectors are convenient for adding/removing all available projectors to/from the VP sheet in one click.
