Select this device to control Christie Digital video projectors.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Christie Digital | User-friendly name. |
| Enable | ON | Toggle to enable/disable the device. |
| Run at startup | ON | Toggle to enable the device when Kinetic Designer is launched. |
| IP | [empty] | Set the IP address of your device. Your device and Kinetic Designer should be on the same subnet. |
| Port | 3002 | TCP/IP port used by the device. |
| ID | 0 | Set the projector ID. |

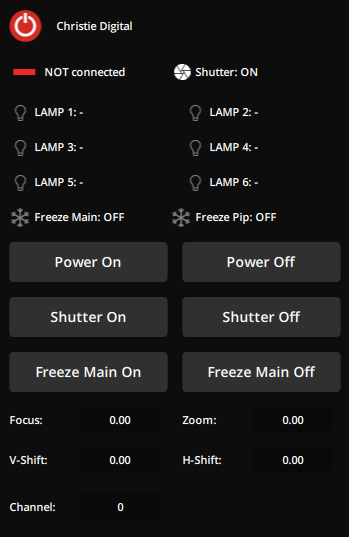

Manual controls of the Christie Digital device in the Editor panel.Task action
| Action | Description |
|---|---|
| Enable device | Enable the device |
| Disable device | Disable the device |
| Power On | Send Christie power on command |
| Power Off | Send Christie power off command |
| Shutter On | Send Christie shutter on command |
| Shutter Off | Send Christie shutter off command |
| Channel | Select channel number |
| Channel PIP | Select channel PIP number |
| Freeze On | Send Christie freeze on command |
| Freeze Off | Send Christie freeze off command |
| Freeze PIP On | Send Christie freeze PIP on command |
| Freeze PIP Off | Send Christie freeze PIP off command |
| Internal Test Pattern | Choose internal test pattern from the list |
| PIP On | Send Christie PIP on command |
| PIP Off | Send Christie PIP off command |
| Picture Mute On | Send Christie picture mute on command |
| Picture Mute Off | Send Christie picture mute off command |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
This device cannot be used as a Digimap trigger.
Graph
This device has no properties that can be read or written from a Graph.
User interface
When drag & dropped into a UI Panel the following commands are available:

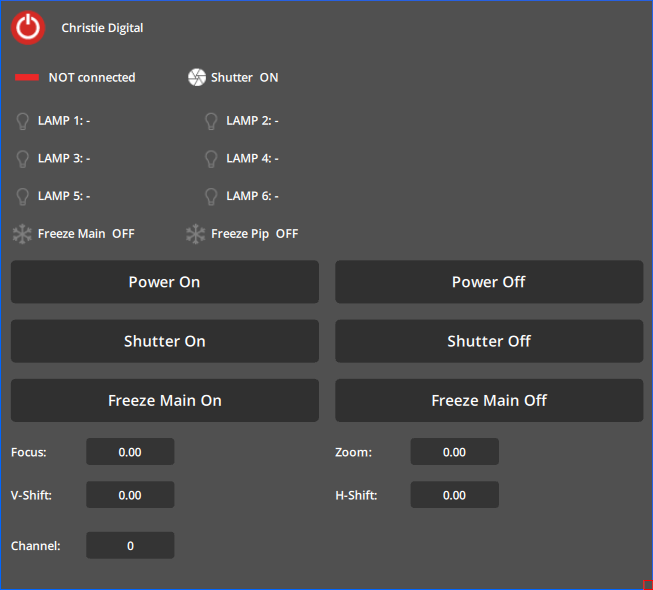

Manual controls of the Christie Digital device in a UI panel.Device information
Check Christie Digital’s website for more information on their video projectors.
