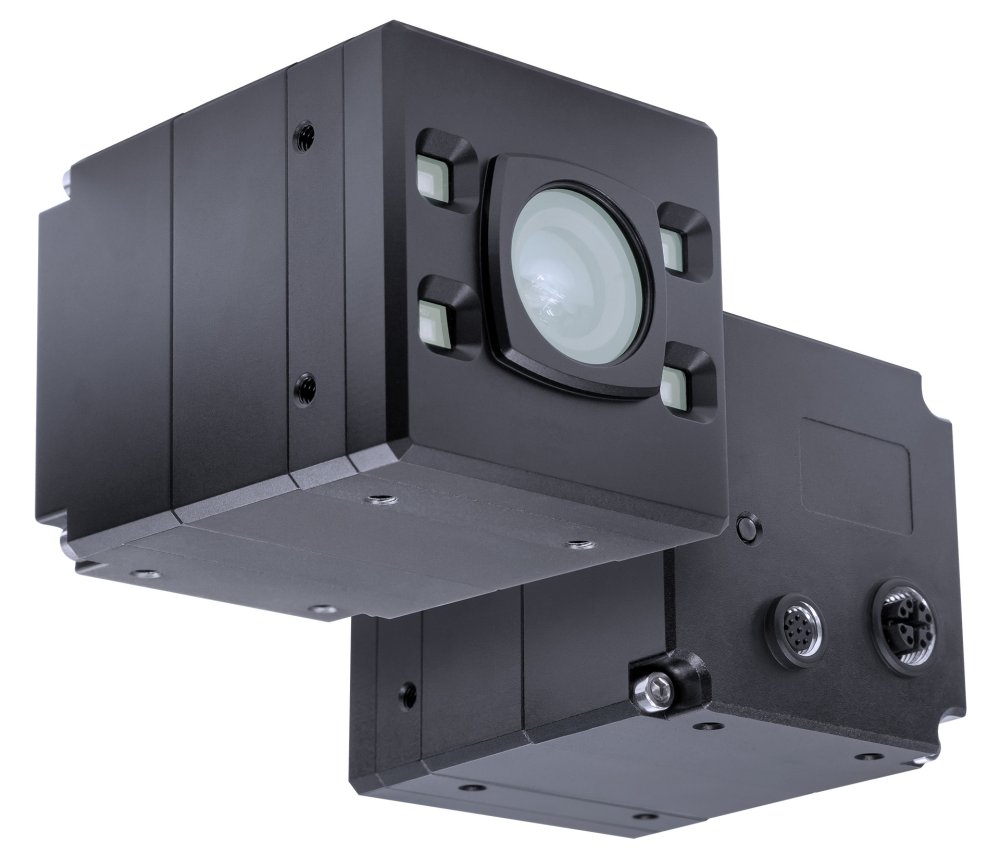

The Helios 2 camera range provides real-time accurate depth information in a Point Cloud format.
They are built for robust and challenging industrial environments and the product range covers different needs.
This device fully supports the Helios2 wide camera.
Other cameras from the Helios2 range may work but some of their specific functionalities may not.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Helios | User-friendly name. |
| Enable | ON | Activate to enable the device. |
| Run at startup | ON | Activate to enable the device at Kinetic startup. |
| IP | [empty] | Enter the IP address of your device. Your device and Kinetic Designer should be on the same subnet. |
| Distance mode | 1.25m | Select the max depth for the camera according to your setup |
| Exposure | 3000us-10Hz | Select a combination of exposure/frequency. A lower frequency and higher exposure gives more precise but less smooth measurements |
Task action
| Action | Description |
|---|---|
| Enable | Enable the device. |
| Disable | Disable the device. |
| Send Command | Send a command to the device. |
| Start Record | Start a recording with the device. |
| Stop Record | Stop the recording with the device. |
| Start Playback | Start a playback of a recording with the device. |
| Start Loop Playback | Start a looped playback of a recording with the device. |
| Stop Playback | Stop any playback currently playing. |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
This device has no actions that can trigger a Digimap.
Graph
| Action | Description |
|---|---|
| Point Cloud | Output Point Cloud data of the camera |
User interface
This device has no actions that can be launched from the UI designer.
Device information
Check the manufacturer website for more information.
