MODULO PI

Displacement

Description

Applies a displace effect, where the geometric position of points from the input image are displaced according to another image, often called a Displacement Map. More information.



Properties

Global

  • Amount X : Sets the amount of displacement to operate along the X axis. The sign of the value (+ or -) will affect the direction of the displacement.
    Default : 0.000
  • Amount Y : Sets the amount of displacement to operate along the Y axis. The sign of the value (+ or -) will affect the direction of the displacement.
    Default : 0.200
  • Relative : Sets an amount of movement to add to the displacement. 0.5 on both values will keep the base image static during the displacement.
    Default : 0.500 – 0.500

Options

  • xComponent : Choose which color channel should be used to displace along the X axis.
    Default : Luma
  • yComponent : Choose which color channel should be used to displace along the Y axis.
    Default : Luma
  • Wrap Mode : Select what should happen when the image leaves the border. Set it to None to use and see only one copy of your base image
    Default : Repeat

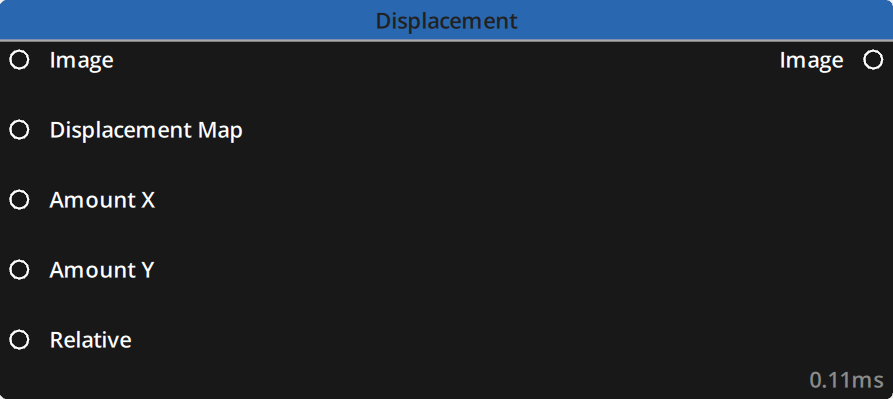

Inputs

Name Type Description
Image Image Image input to use for the effect. This image will be displaced following the map input below
Displacement Map Image Image to use as a map for the effect.
Amount X Float Amount of displacement applied along the X axis
Amount Y Float Amount of displacement applied along the Y axis
Relative Vector 2D Adds an amount of movement to the displacement

Outputs

Name Type Description
Image Image Image output of the effect

Example



In this example :
  • Amount X : Animated with an LFO between -2 and 2
  • Amount Y : Animated with an LFO between -2 and 2
  • Relative : 0.5 / 0.5
  • X Component : Luma
  • Y Component : Luma
  • Wrap Mode : None
