Compute an interpolation between two inputs by following a third input that serves as an interpolation parameter between 0 and 1.
The curve type for the interpolation can be set in the Editor panel.
The following types are accepted as inputs :
- Integer, Float, Double
- Vector 2D, 3D, 4D
- Color
Properties
Easing curve: Choose the easing curve used to compute the interpolation.
Default : Linear
Interpolation: Manually set the interpolation.
Default : 0.0
As the interpolation parameter changes between 0 and 1, the output will be interpolated between Value 1 and Value 2.
Inputs
| Name | Type | Description |
|---|---|---|
| Value 1 | Variant | Lower value to interpolate from |
| Value 2 | Variant | Higher value to interpolate from |
| Interpolation parameter | Float | Input value to apply the absolute operation to |
Outputs
| Name | Type | Description |
|---|---|---|
| Value | Variant | Result of the interpolation |
Example

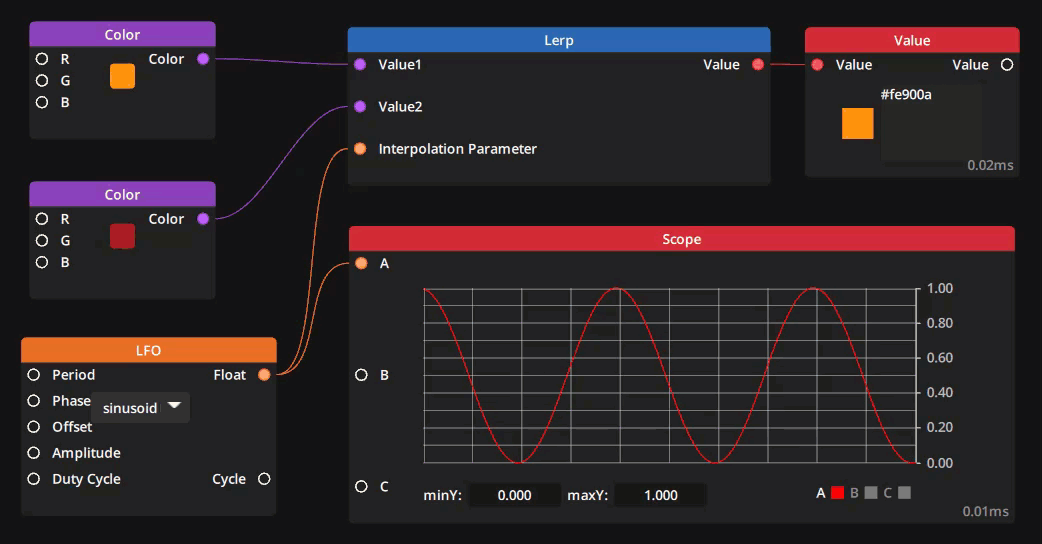

Example of Lerp node using colors as inputs.
