Click on  or double click |
add a dmx input |
|---|---|
Click on  icon |
delete a dmx input |
Settings tab
Select the DMX input you want to edit.
| Name | You can change the name of the selected DMX input |
|---|---|
| Subnet | choose the DMX subnet |
| Universe | choose the DMX universe |
Spy tab
![]()
You can visualize the received dmx values.
With a DMX Input you can:

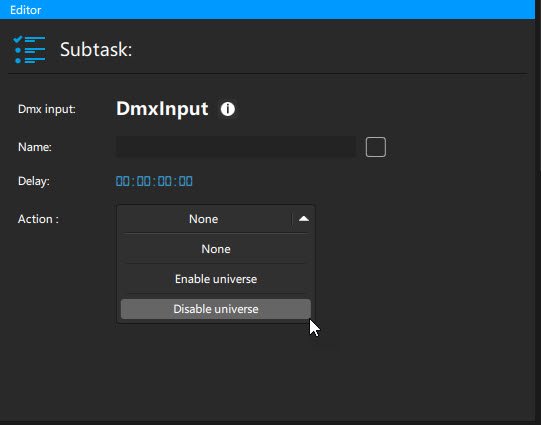

Drag&drop in a subtask or a command layer in a timeline:
| Enable Universe | Enable the chosen DMX Input |
|---|---|
| Disable Universe | Disable the chosen DMX Input |

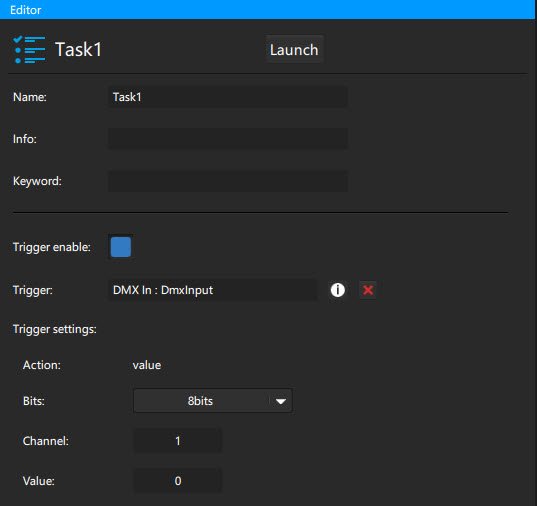

Drag&drop in a trigger area of a task:
| Bits | Choose 8bits, 16bits… channel mode |
|---|---|
| Channel | Choose the DMX channel |
| Value | Choose the DMX value |

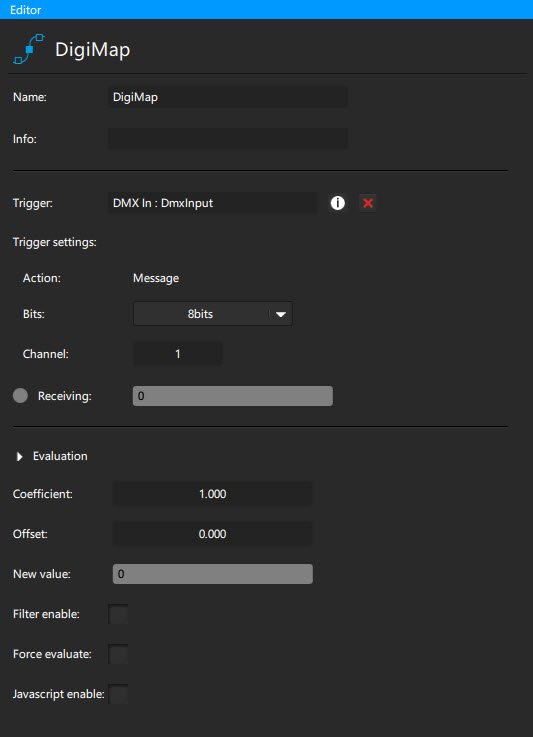

Drag&drop in a trigger area of a digimap:
| Bits | Choose 8bits, 16bits… channel mode |
|---|---|
| Channel | Choose the DMX channel |
Drag&drop in a Graph:
| Start Channel | Choose the DMX channel |
|---|---|
| Offset | you can offset the incoming DMX channel |
| Coeff | you can adda coefficent to the incoming DMX channel |
| Bits | Choose 8bits, 16bits… channel mode |
