Select this device to control your Projection Design video projectors.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Projection Design VP | User-friendly name. |
| Enable | ON | Toggle to enable/disable the device. |
| Run at startup | ON | Toggle to enable the device when Kinetic Designer is launched. |
| IP | [empty] | Set the IP address of your device. Your device and Kinetic Designer should be on the same subnet. |
| Port | 1025 | TCP/IP port used by the device. |

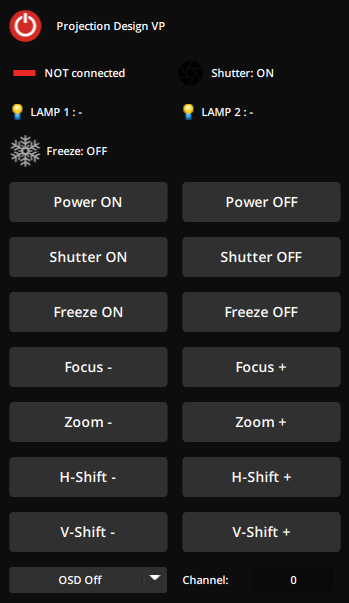

Manual controls of the Projection Design device in the Editor panel.Task action
| Action | Description |
|---|---|
| Enable device | Enable the device |
| Disable device | Disable the device |
| Power On | Send Projectiondesign power on command |
| Power Off | Send Projectiondesign power off command |
| Lamp mode | Select lamp mode |
| Shutter On | Send Projectiondesign shutter on command |
| Shutter Off | Send Projectiondesign shutter off command |
| Channel | Select channel value |
| Freeze On | Send Projectiondesign freeze on command |
| Freeze Off | Send Projectiondesign freeze off command |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
This device cannot be used as a Digimap trigger.
Graph
This device has no properties that can be read or written from a Graph.
