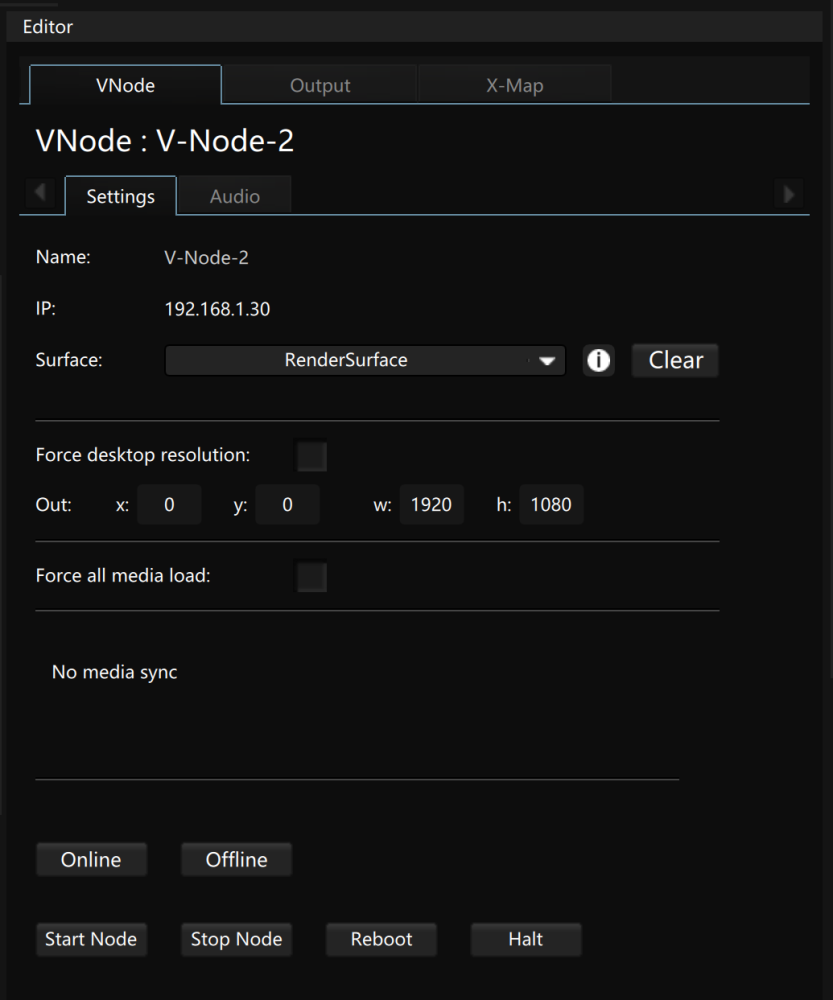

V-Node settings

Name: Name of the Modulo Kinetic V-Node server
IP: IP address of the Modulo Kinetic V-Node server. The Modulo Kinetic Designer and all V-Node server(s) need to be in the same subnet.
Surface: You need to assign a render surface to each V-Node to indicate the content to display in the V-Node.
Force desktop resolution: Force the desktop resolution of your V-Node
Out: Indicate the resolution of your V-Node server
Force all media load: Force the synchronisation of all assets on the V-Node server even if there is some filter to disable the load of media. It is useful for the spare V-Node.

Then, you will see the content synchronisation with a progress bar.

Several buttons will then appear:

Online: Connect to the Modulo Kinetic V-Node server in network (the V-Node application needs to be started).
Offline: Disconnect the V-Node server.
Start: Start the Modulo Kinetic V-Node application remotely.
Stop: Quit the V-Node application remotely.
Reboot: Reboot the V-Node server remotely.
Halt: Halt the V-Node server remotely.

You can create the physical audio channels on your V-Node and patch virtual channels to the physical one.
It is possible to adjust the volume per channel.
You can also use the mute and solo functions.
