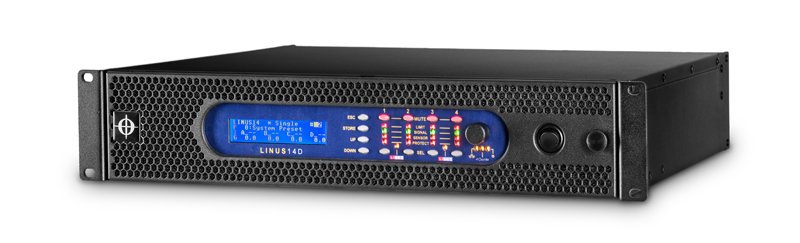

This device can control the LINUS DSP amplifiers of CODA Audio.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Coda Linus | User-friendly name. |
| IP | [empty] | Enter the IP address of your device. Your device and Modulo Player should be on the same subnet. |
| Port | 3000 | TCP/IP port used by the device. Do not change unless you know what you are doing. |
Task action
| Action | Description |
|---|---|
| Power Off | Power off the amplifier |
| Power On | Power on the amplifier |
| Load Snapshot | Load a previously created preset of the levels |
| Mute Cha.1 | Toggle Channel 1 to mute |
| Unmute Cha.1 | Toggle Channel 1 to unmute |
| Mute Cha.2 | Toggle Channel 2 to mute |
| Unmute Cha.2 | Toggle Channel 2 to unmute |
| Mute Cha.3 | Toggle Channel 3 to mute |
| Unmute Cha.3 | Toggle Channel 3 to unmute |
| Mute Cha.4 | Toggle Channel 4 to mute |
| Unmute Cha.4 | Toggle Channel 4 to unmute |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
This device has no actions that can trigger a Digimap.
User interface
This device has no actions that can be launched from the UI Designer.
Device information
Check the manufacturer website for more information.
