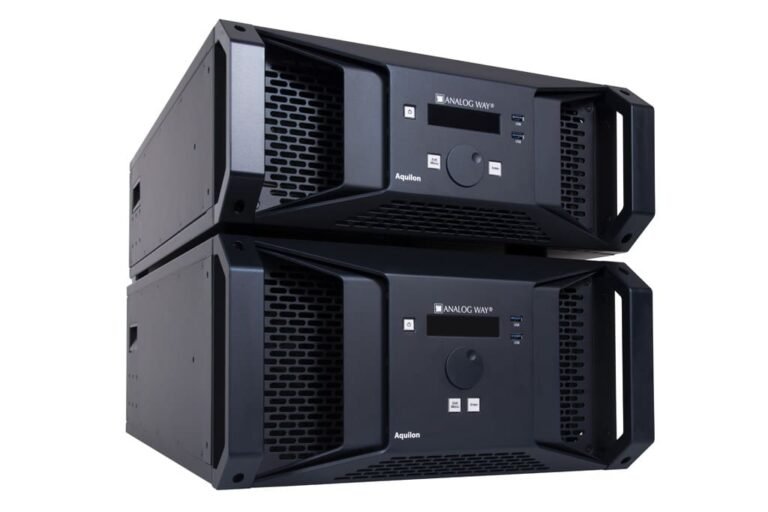

Aquilon C is a fully modular and scalable 4K/8K multi-screen presentation system and videowall processor with up to 16× 4K60p inputs and 16× 4K60p outputs.
The Aquilon C combines industrial grade reliability, unrivaled ease-of-use, versatile 4K digital connectivity, unmatched real-time 10/12-bit 4:4:4 video processing power, best-in-class image quality and pure 4K60p on each input and output with ultra-low latency.
Settings
| Property | Default | Description |
|---|---|---|
| Name | AnalogWay Aquilon | User-friendly name. |
| IP | [empty] | Enter the IP address of your device. Your device and Modulo Player should be on the same subnet. |
| MAC | [empty] | Enter the MAC address of the device’s network card. This is mandatory to use the wake-on-LAN feature. |
| Port | 10606 | TCP/IP port used by the device. Do not change unless you know what you are doing. |
Task action
| Action | Description |
|---|---|
| Reboot | Reboot the Aquilon |
| Power Off | Power off the Aquilon |
| Wake up | Use the wake-on-LAN to power on the Aquilon This requires the MAC address to be properly configured in the device settings. |
| Take Preset screen | Select a preset to take |
| Recall Preset to Preview | Select a preset to recall on the preview of a specified screen |
| Recall Preset to Program | Select a preset to recall on the program of a specified screen |
| Recall Preset to program Aux | Select a preset to recall on the auxiliary program of a specified screen |
| Recall Master Preset to Preview | Select a master preset to recall to preview |
| Recall Master Preset to Program | Select a master preset to recall to program |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
This device has no actions that can trigger a Digimap.
User interface
This device has no interface available in the UI Designer.
Device information
Go to the manufacturer website for more information.
