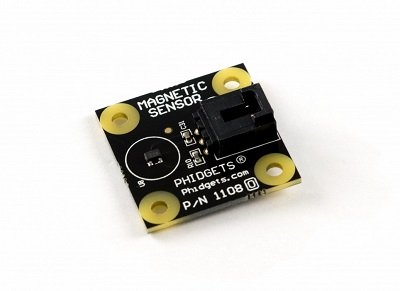

Choose this device to connect to a Phidgets Magnetic sensor ID: 1108_0
The 1108 is a hall-effect sensor that provides a voltage output that is proportional to the applied magnetic field.

Settings:

Name: User-friendly name
Serial Number: Enter the serial number of the VINT HUB Phidget
Port: Choose the port
Interval ms: Choose the refresh interval in milliseconds

Task action:

N/A

Task trigger:

Trigger a task according to the incoming parameter:

Choose the trigger condition:
> trigger the task when the incoming value is superior to the condition value
>= trigger the task when the incoming value is superior or equal to the condition value
< trigger the task when the incoming value is inferior to the condition value
<= trigger the task when the incoming value is inferior or equal to the condition value
= trigger the task when the incoming value is equal to the condition value
range trigger the task when the incoming value is superior to the condition value min and inferior to value max

For all theses conditions, you can set a hysterys value to avoid false triggering.
For example you use the > condition with a value of 0.5, you set an hysterys value of 0.1. When the incoming value reach 0.5, the task is triggered.
If the incoming value go back to 0.45 then go to 0.5, the task is not triggered.
If the incoming value go back to 0.35 (less than condition value – hystererys value) then go to 0.5, the task is triggered.

Digimap trigger:

Use the magnetic fields or sense the proximity of a magnet detected by the sensor as an input for Digimap.

User interface:

You can add this device in any user panel.
You can then choose the available features in the panel.

Device information:

Go to this page for more information.
You need to plug this device to a VINT HUB Phidget.
