Quadrature encoder

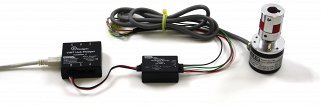

Choose this device to connect to a Phidgets Dial HIN1101_0 A quadrature encoder is the most commonly used feedback device for a DC or stepper motor. Interface a quadrature encoder at speeds of up to 100,000 quadrature cycles per second to a port on your VINT Hub.

Settings:

Name: User-friendly name
Serial Number: Enter the serial number of the VINT HUB Phidget
Port: choose the port
Channel: Choose the channel. (default is 0 when you have a single quadrature encoder)
Interval ms: Choose the refresh interval in milliseconds

Task action:

*Set value:” Set the value of the encoder
*Reset:” Reset to zero the value of the encoder

Task trigger:

Trigger a task according to the incoming parameter:

Choose the trigger condition:
> trigger the task when the incoming value is superior to the condition value
>= trigger the task when the incoming value is superior or equal to the condition value
< trigger the task when the incoming value is inferior to the condition value
<= trigger the task when the incoming value is inferior or equal to the condition value
= trigger the task when the incoming value is equal to the condition value
range trigger the task when the incoming value is superior to the condition value min and inferior to value max

For all theses conditions, you can set a hysterys value to avoid false triggering.
For example you use the > condition with a value of 0.5, you set an hysterys value of 0.1. When the incoming value reach 0.5, the task is triggered.
If the incoming value go back to 0.45 then go to 0.5, the task is not triggered.
If the incoming value go back to 0.35 (less than condition value – hystererys value) then go to 0.5, the task is triggered.

Digimap trigger:

You will receive the encoder position as input.

User interface:

You can add this device in any user panel.
You can then choose the available features in the panel.

Device information:

Go to this page for more information.
You need to plug this device to a VINT HUB Phidget.
