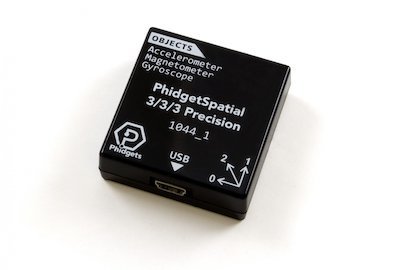

Choose this device to connect to a PhidgetSpatial Precision 3/3/3 High precision 1044_1B
This spatial board has a 3-axis accelerometer, gyroscope and compass with high resolution readings at low magnitudes.
Settings:
Name: User-friendly name
Serial Number: Enter the serial number of the device
Interval ms: Choose the refresh interval in milliseconds
Task action:
N/A
Task trigger:
Trigger a task according to the incoming parameter:
Choose the trigger condition:
> trigger the task when the incoming value is superior to the condition value
>= trigger the task when the incoming value is superior or equal to the condition value
< trigger the task when the incoming value is inferior to the condition value
<= trigger the task when the incoming value is inferior or equal to the condition value
= trigger the task when the incoming value is equal to the condition value
range trigger the task when the incoming value is superior to the condition value min and inferior to value max
For all theses conditions, you can set a hysterys value to avoid false triggering.
For example you use the > condition with a value of 0.5, you set an hysterys value of 0.1. When the incoming value reach 0.5, the task is triggered.
If the incoming value go back to 0.45 then go to 0.5, the task is not triggered.
If the incoming value go back to 0.35 (less than condition value – hystererys value) then go to 0.5, the task is triggered.
Digimap trigger:
Select the accelerometer axis X or Y or Z, or the Gyroscope angular speed X or Y or Z, or the magnetic field on X or Y or Z.
User interface:
You can add this device in any user panel.
You can then choose the available features in the panel.
Device information:
Go to this page for more information.
