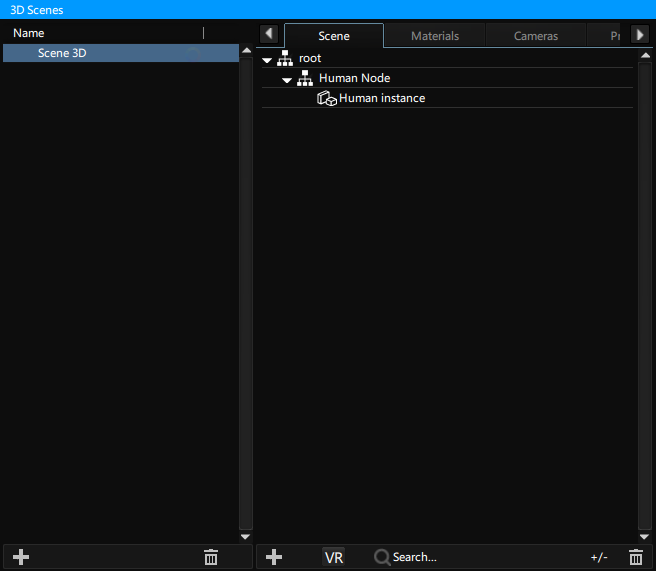

This panel gives you access to the complete structure of your scene and allows you to interact with it.

The structure is in the form of a tree where each node can have instances, cameras, projectors,… and these nodes have positioning properties in space.
At any time you can re-parent or reorder the structure by dragging and dropping the different elements into each other.
At the bottom of this panel there is a toolbar where you will find: a dynamic search field when you need to find an element of your scene by its name, an expand/colapse hierarchy button, a trash can button to delete the selected elements and the VR button to activate the rendering in a virtual reality headset if there is one on the side of the PC.


Generally speaking, your scene is organized in nested nodes as in most 3D software. These nodes are used to position elements in 3D space. Each transformation of a node affects its child nodes.

Visible displays (or not) the node and all of its children

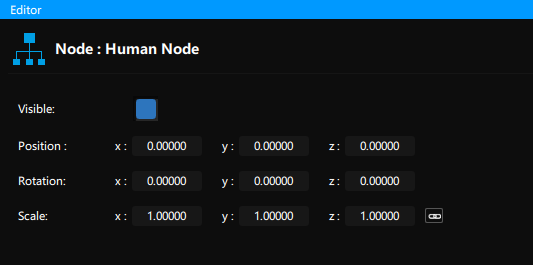

Position x,y,z position of the node relative to its parent node
Rotation rotations around the x,y,z axes of the node relative to its parent node
Scale scale factor on the x,y,z axes of the node

These values can be animated in an animation sheet by dragging and dropping them into the curve editor linked to an animation.
They can also be modified from the graph by dragging and dropping the whole node into one of the existing graphs.
The last way to interact with the node is by dragging and dropping it into a timeline. This will then create a layer to animate its values.

Add objects

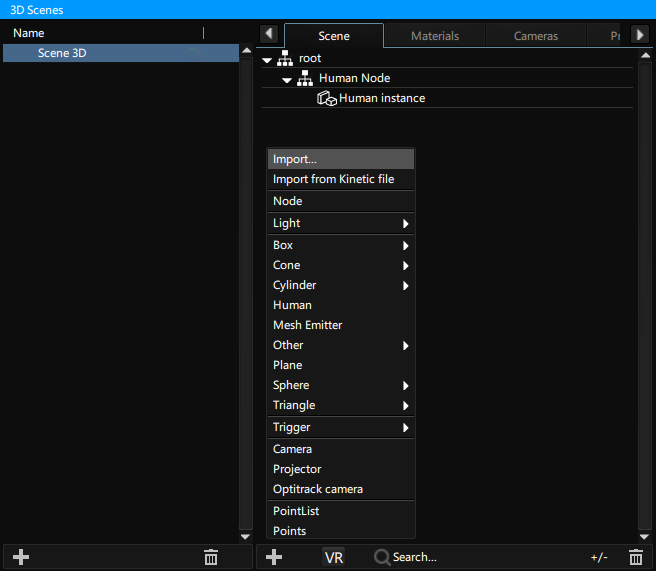

By pressing the “add” button on the toolbar, a menu will give you a list of objects that can be added to your scene: prefabs, cameras, projectors, lights, or import a 3D file.


You can import a wide variety of 3D files: collada, fbx, obj, 3ds,… directly into Kinetic thanks to its import function.

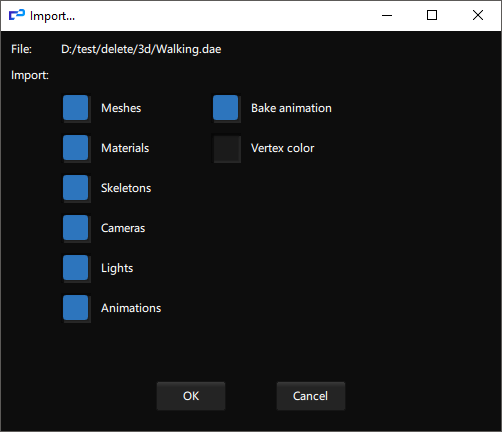

Once you have selected your file, you can choose what kind of elements you want to add to your scene.

Meshes imports the different geometries/objects from the file
Materials imports the available materials/textures from the file
Skeletons imports the skeleton of objects if they have them
Cameras imports the available cameras
Lights imports the available lights
Animations imports the available animations
Bake animation pre-calculates animations in a separate file (if imported) see here
Vertex color in some cases, it is possible that each vertex of the object has its own color, so it is necessary to activate this parameter

Once your file is imported, Kinetic will create a node in your scene with the basename of this file.

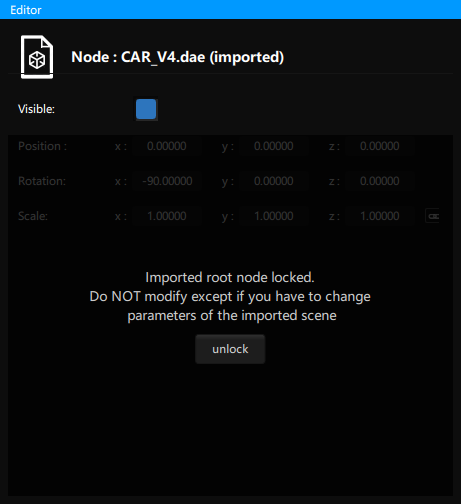

By default this node is “locked” because it contains transformation information related to the way it was exported. It is nevertheless possible to unlock it to modify its values, but we do not recommend it.

Import from Kinetic file

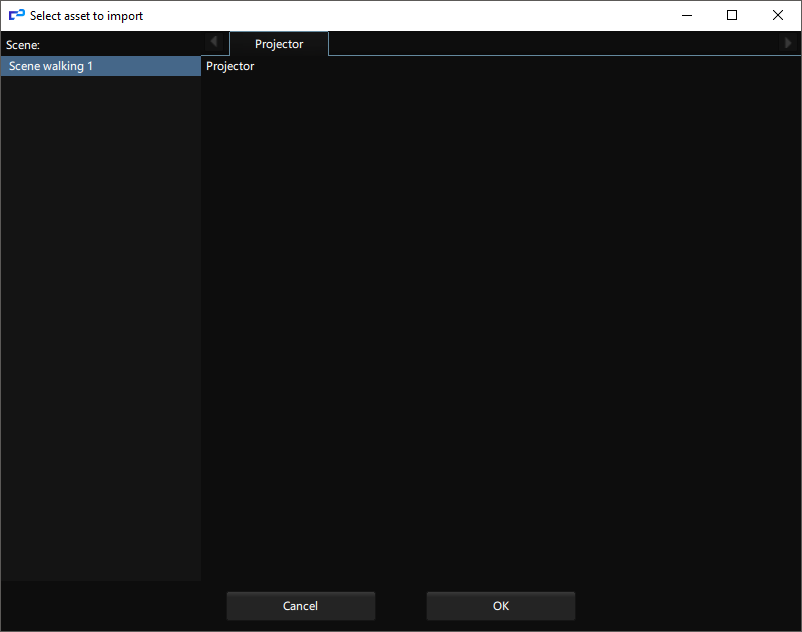

This option allows you to import only the projectors from another existing Kinetic project.

Scene parameters

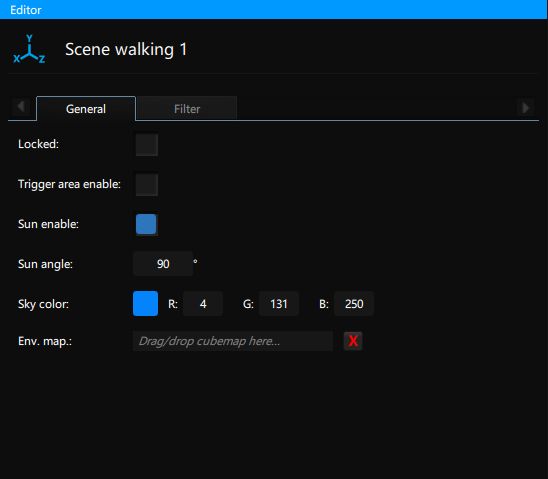

In the scene edit panel you will find the following items:

Locked locks the scene, it can no longer be edited
Trigger area enable activates the area triggers (OFF by default, requires more calculation)
Sun enable activates a default light source in the scene
Sun angle (0-180) angle of incidence between the default light source and the ground in degrees (90 by default, zenital light)
Sky color color of the sky when it is displayed in one of the views
Env. map see below

Environment map

Environment map, or reflection map, is an efficient image-based lighting technique for approximating the appearance of a reflective surface by means of a precomputed texture image.
The texture is used to store the image of the distant environment surrounding the rendered object.
In Kinetic this environment map is in the form of an unfolded cube. This unfold must be in 4:3 or square format.

square skybox
4:3 skybox

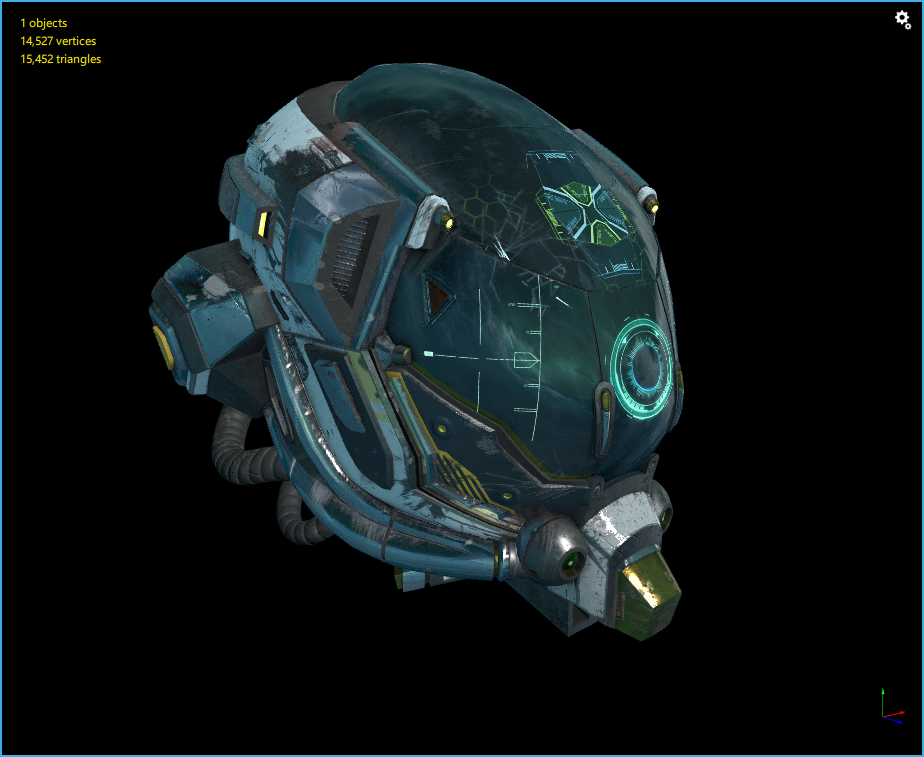

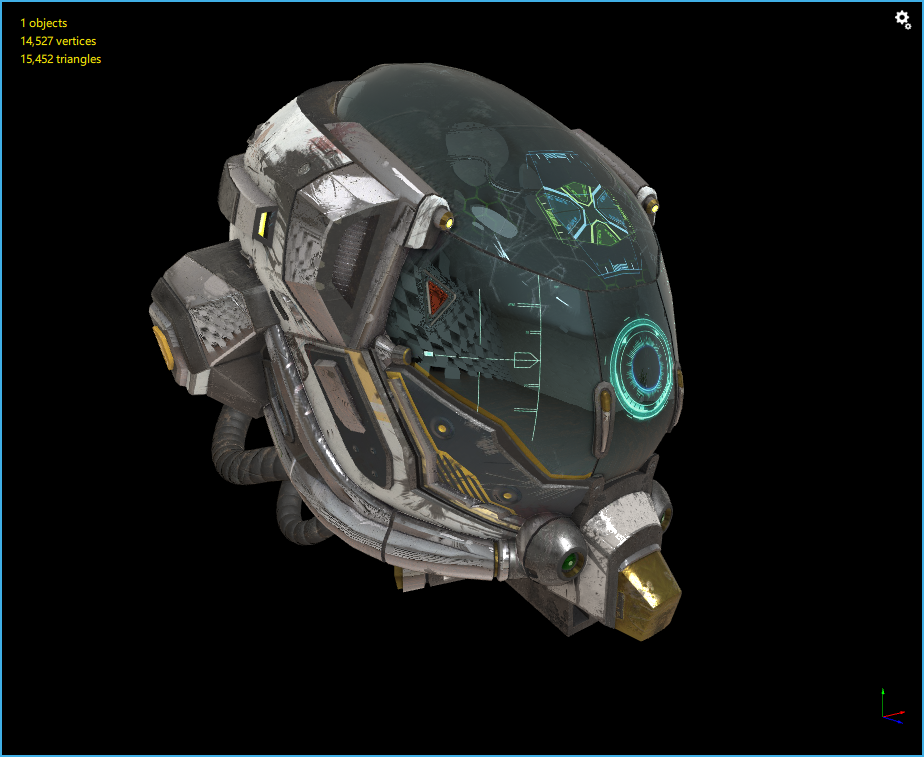

With the two textures above we obtain the following results (no light has been modified):

There is a very clear change in colors in addition to the change in reflections.

To modify this environment map, you must click on your scene in the 3D Panel to display its editor. You will then just have to drag and drop an image from your explorer directly into the “Env. map” field.

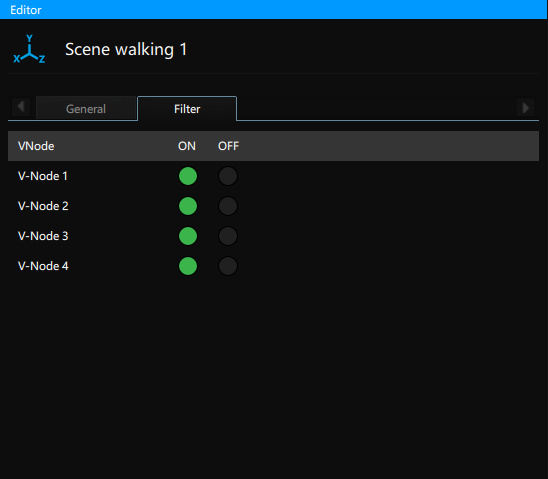

In the editor of your scene there is a tab to filter its upload/download in the VNodes. By default all scenes are sent to all servers.
These filters work the same way as the media filters.

Area triggers

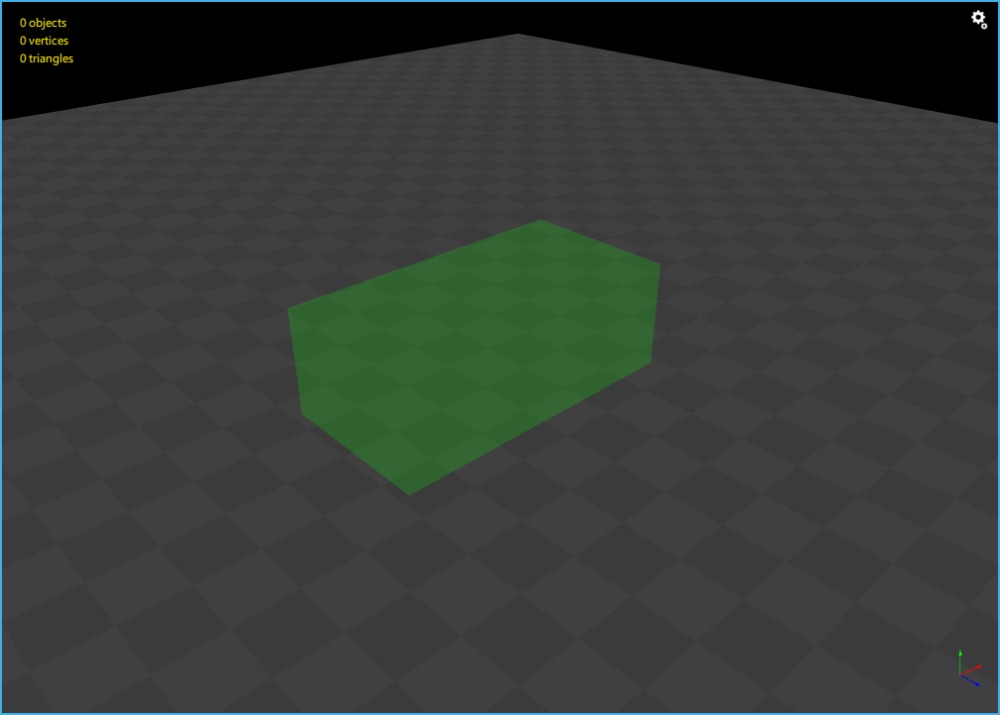

You can add areas in your scene that will be able to trigger tasks.

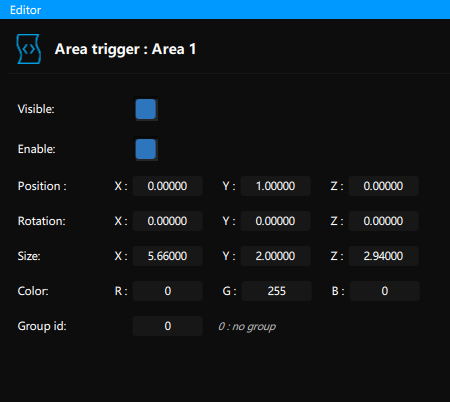

To do this, a zone must be declared and parameterized (position, size, group,…). Then you have to drag and drop it into a task as trigger.
Once done, you can decide which instance is going to trigger and when, by entering or leaving the zone.

As the zones are boxes it is possible to make more complex shapes by adding several zones with the same group id. By doing this it is possible to have overlaps without triggering any input or output signal.

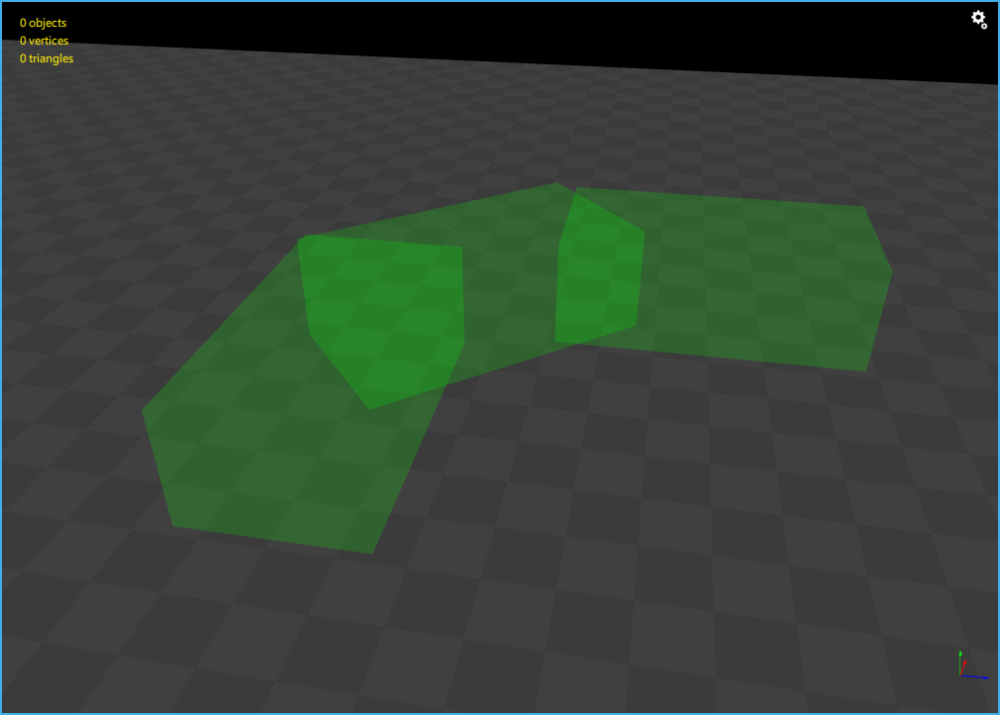

3 areas in the same group id
