You received the Modulo Pi Learning kit. You can now build your two setups.

The kit was designed to help you practice Modulo Player and Modulo Kinetic.
A full series of tutorials is based on this kit and will show you how to use our media server solutions.
Thanks to the tutorials and Learning kit, you will create projects from scratch, and be guided to discover Modulo Player and Modulo Kinetic’s capabilities every step of the way: Playlist or timeline management, 2D and 3D mapping, live mixer, show control, and more.

The Modulo Player tutorials are available in English and French.

The Learning kit includes the following:

  • 3 corporate shapes: Half circle, π sign, quadrilateral

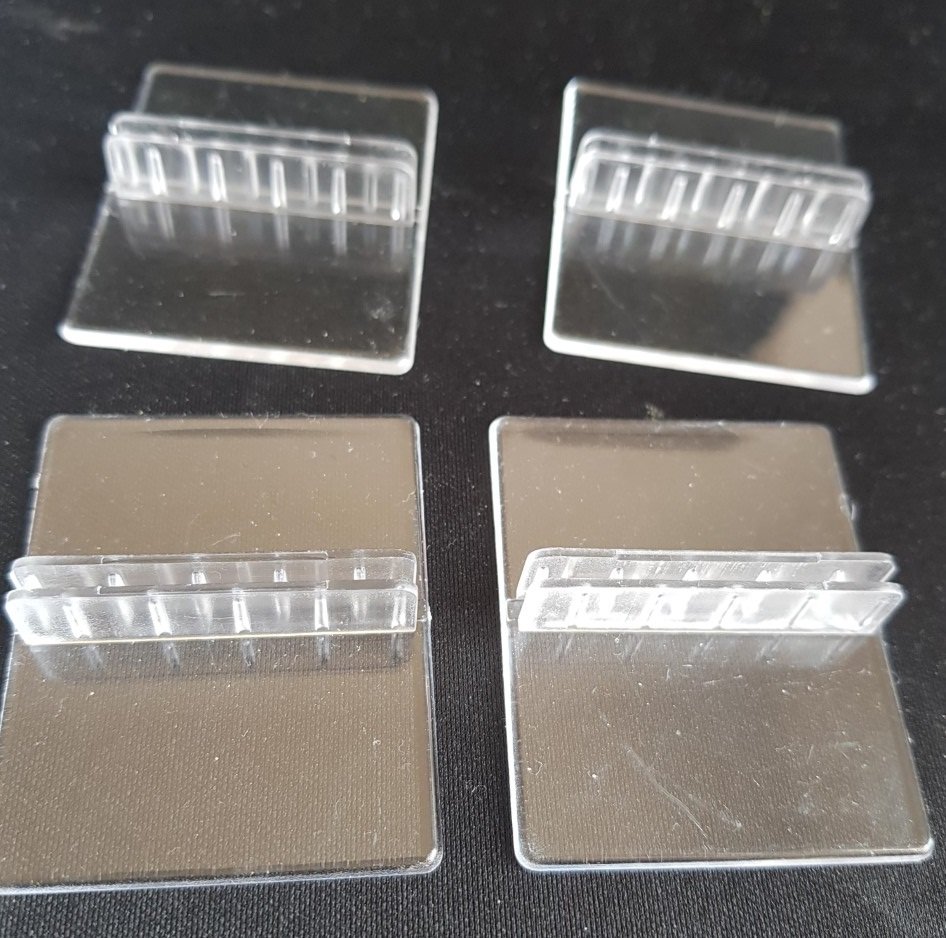

  • 4 plastic holders for the corporate shapes
  • 1 self-assembly castle
  • A full media kit

The tutorials also include projection on a cube.
The cube is not provided in the kit, but you can use a cube of any size.

You will need something similar to a dark box in order to place your shapes and project on them.

During our classes, we use some white/grey storage boxes that you can find in any furniture store.
Here is an example of reference.

You will also need one pico video-projector equipped with 1 x HDMI input supporting HD, and offering a minimum resolution of 854×480.
Here are two examples of references: Ref 1, Ref 2.

Corporate shapes:

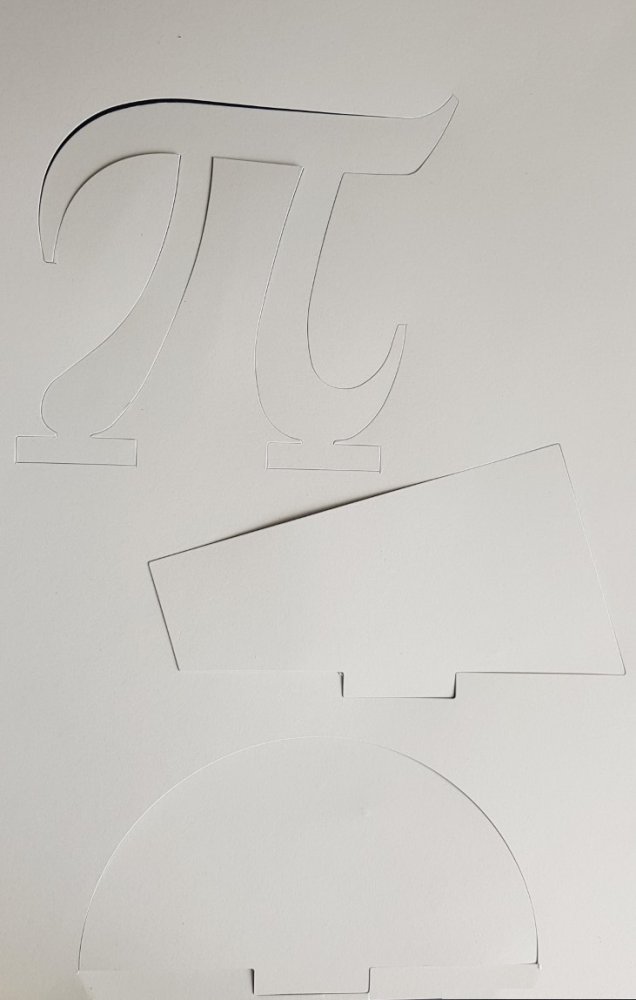

Extract the shapes from the page.

Use the plastic holders for all shapes.

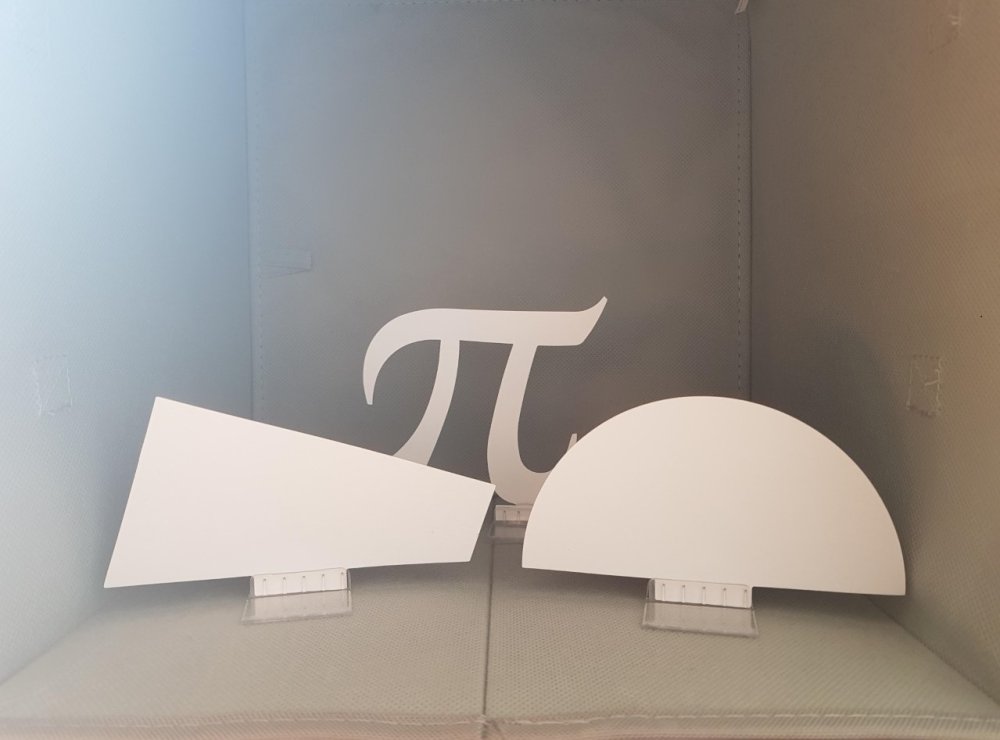

Place your corporate shapes in a mapping box.

Install your video-projector to project on all shapes.
You can now follow the dedicated tutorial available in English and French.

Cardboard castle:

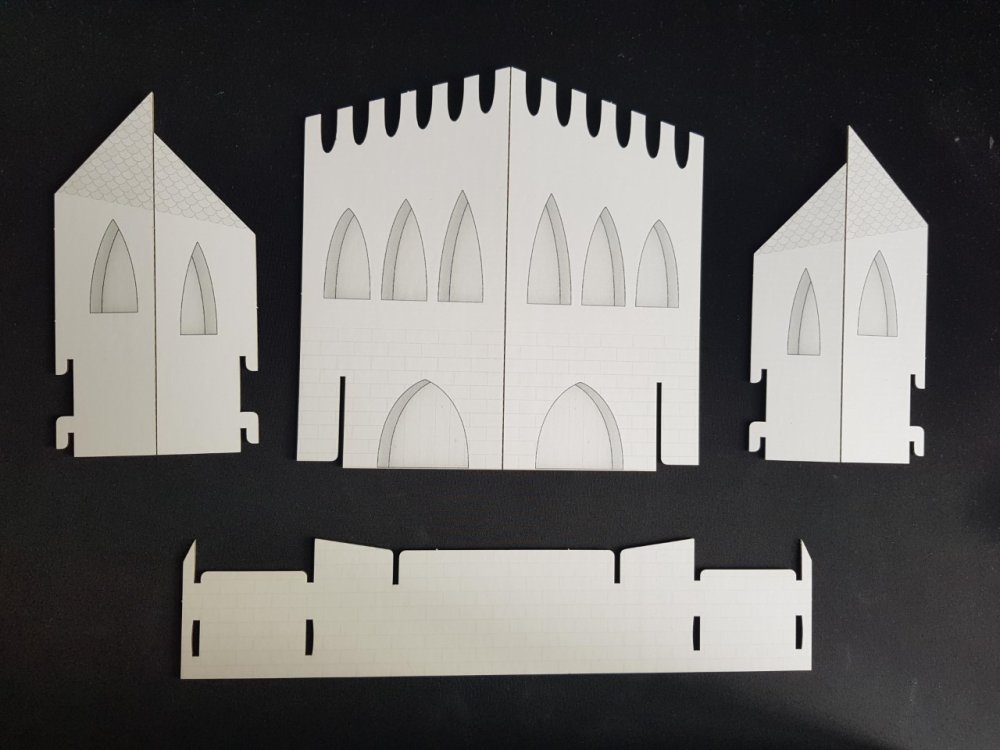

The castle consists in four pieces.
To determine where the left and right towers are, look at their roof!

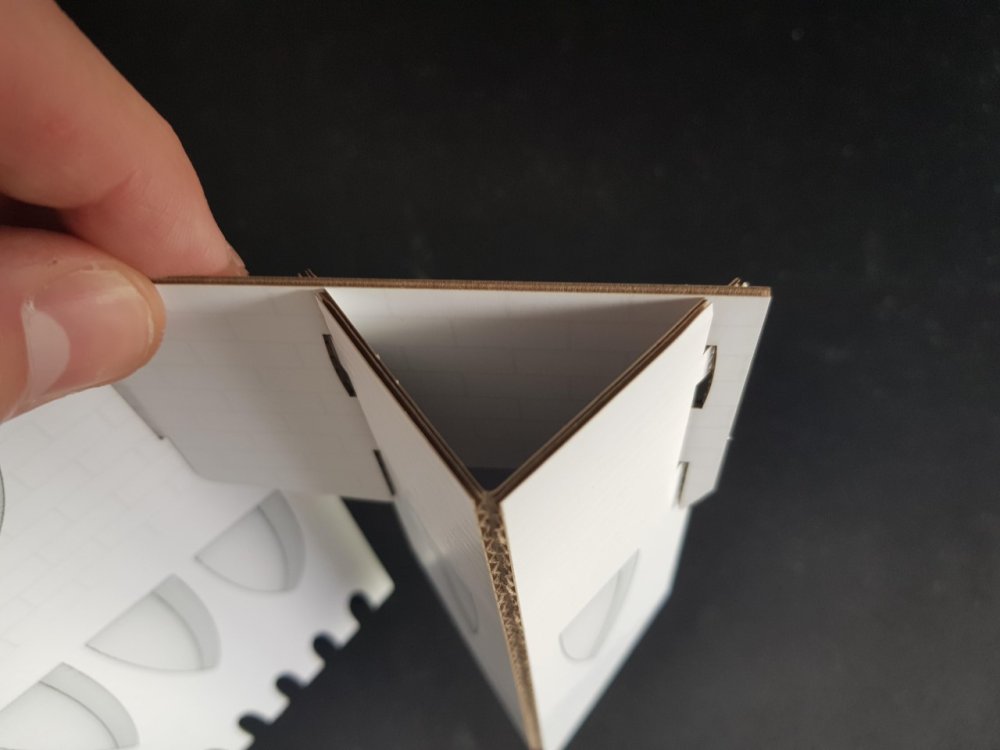

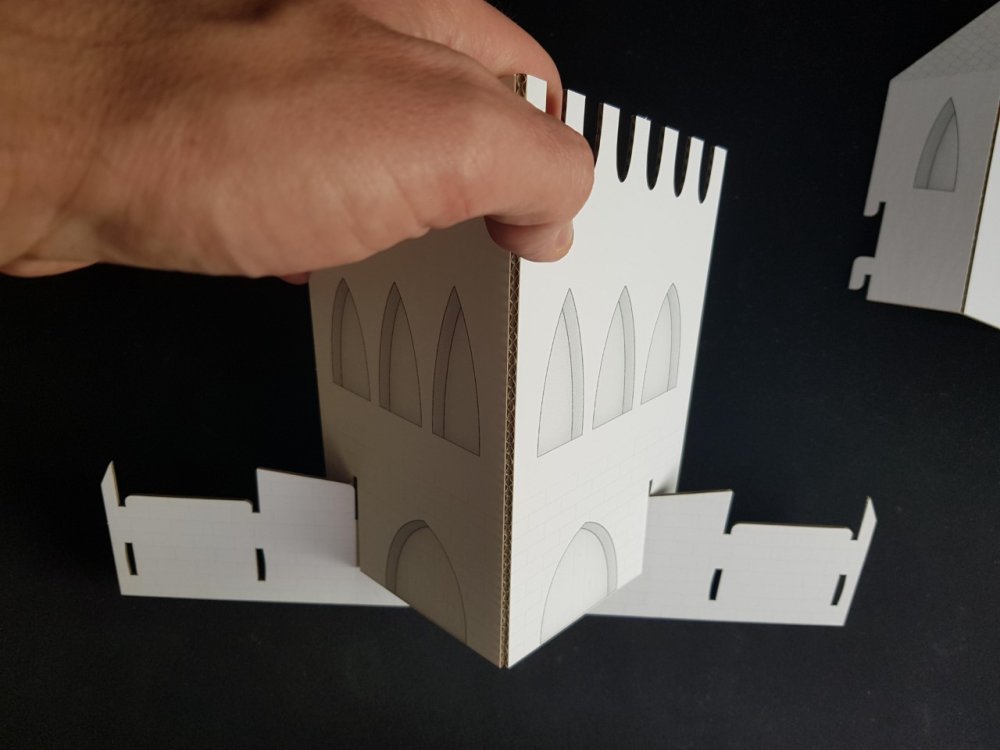

Bend the central tower.

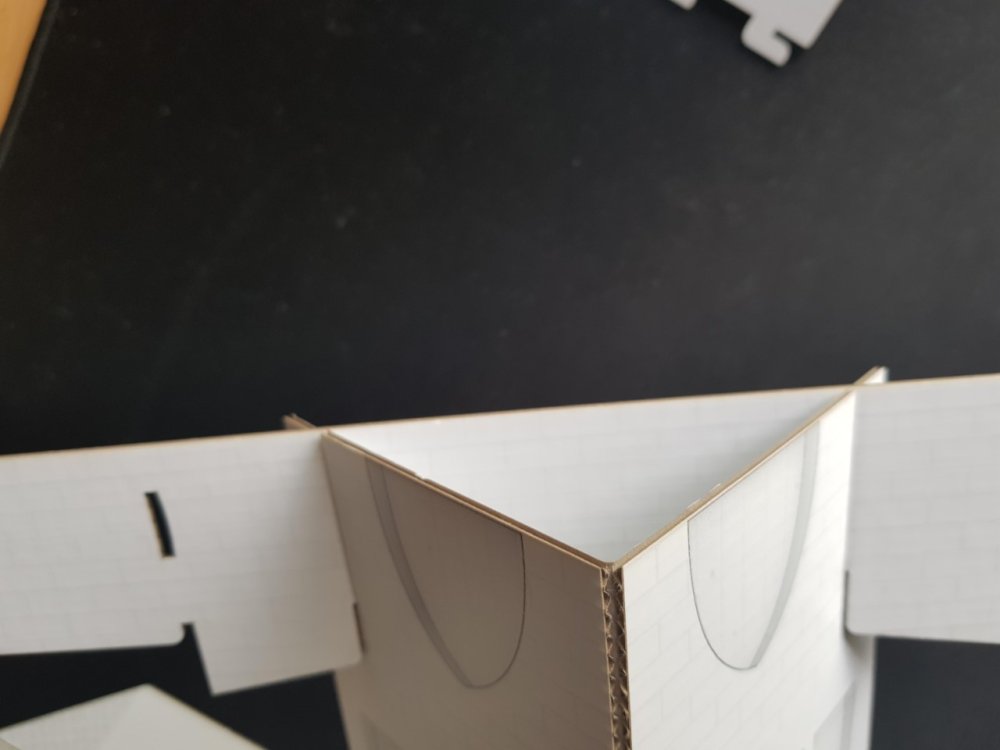

Then insert the central tower into the main shape.

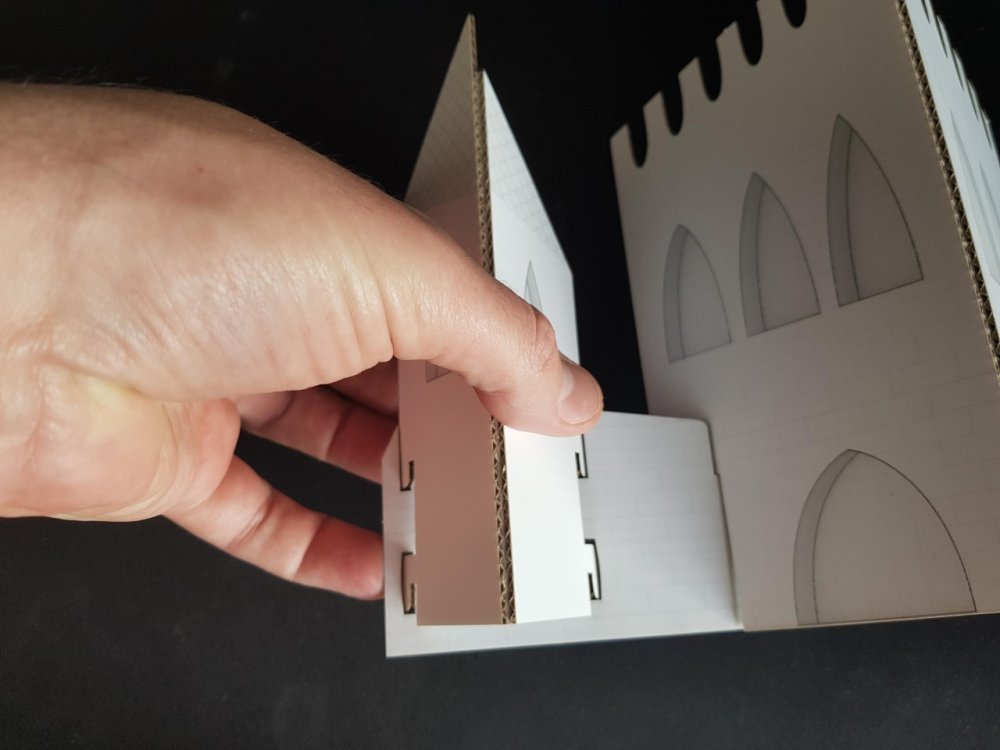

Prepare the left tower, and insert it into the main shape.

Adjust carefully so that the tower is aligned with the main shape.

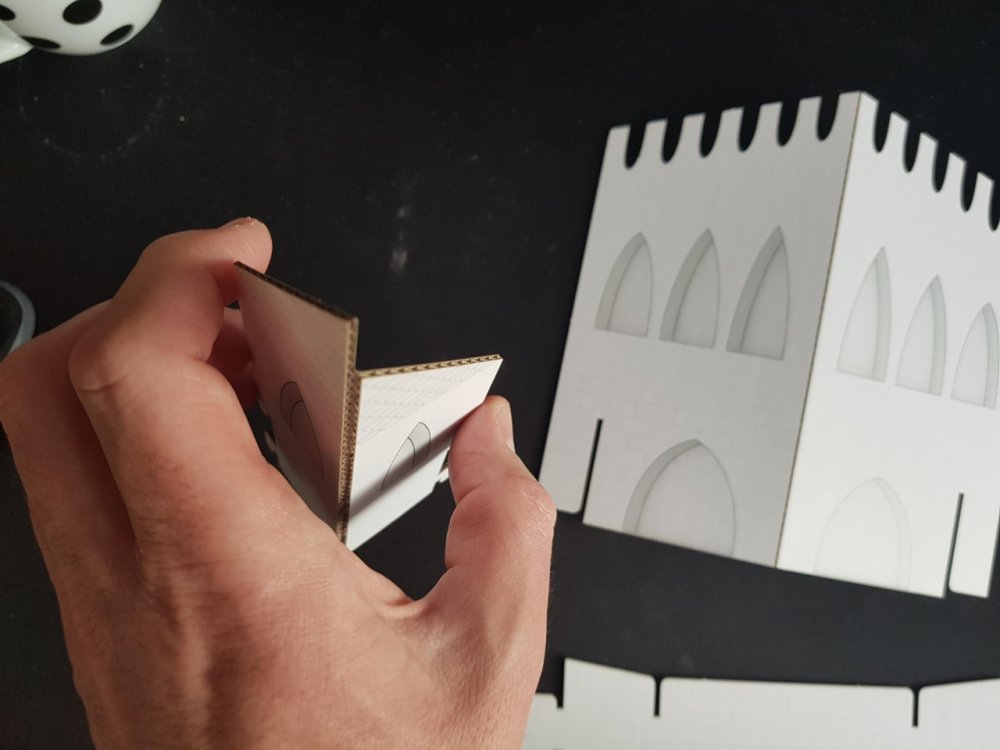

Prepare the left tower.

Adjust carefully to have an aligned tower on the main shape.

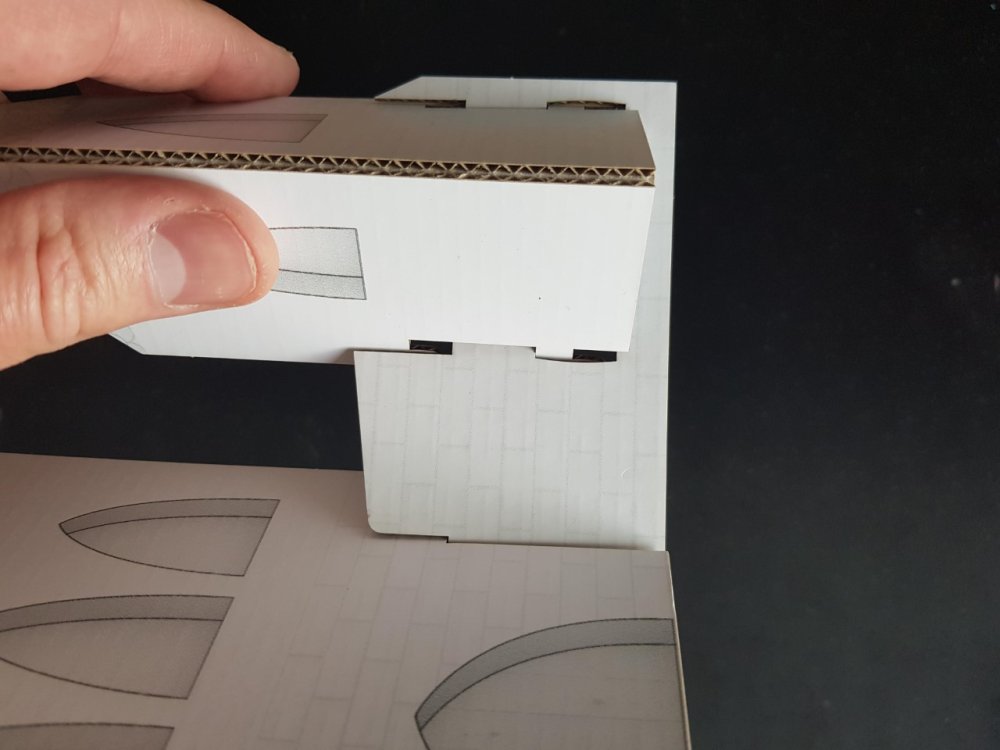

Prepare the right tower.

Adjust carefully to have an aligned tower on the main shape.

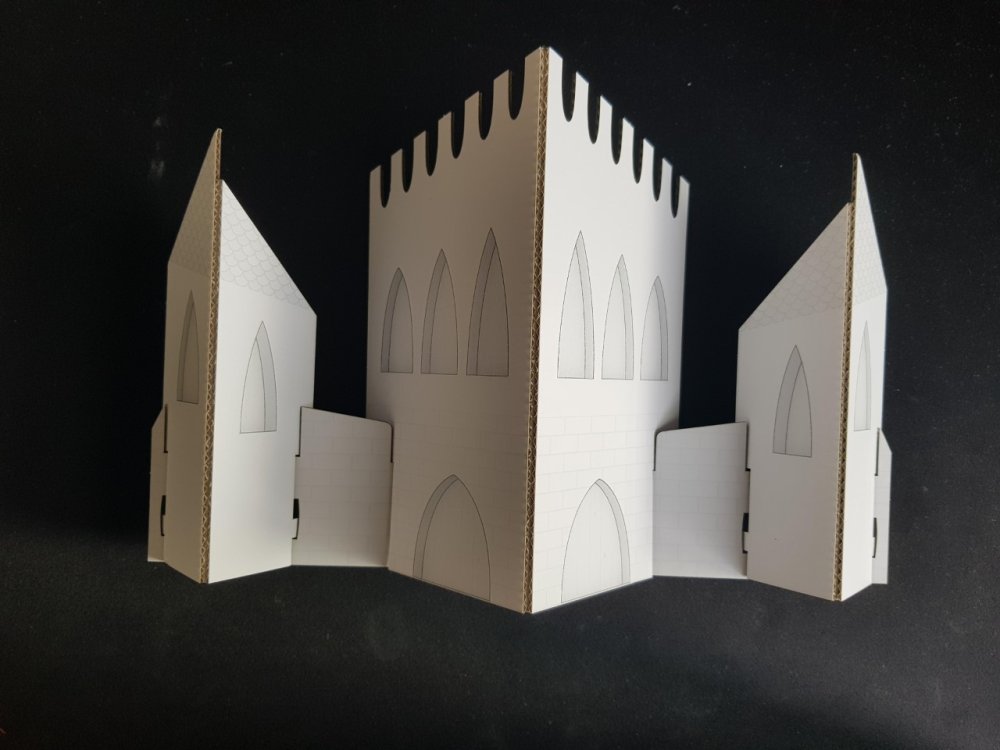

Your castle is ready!

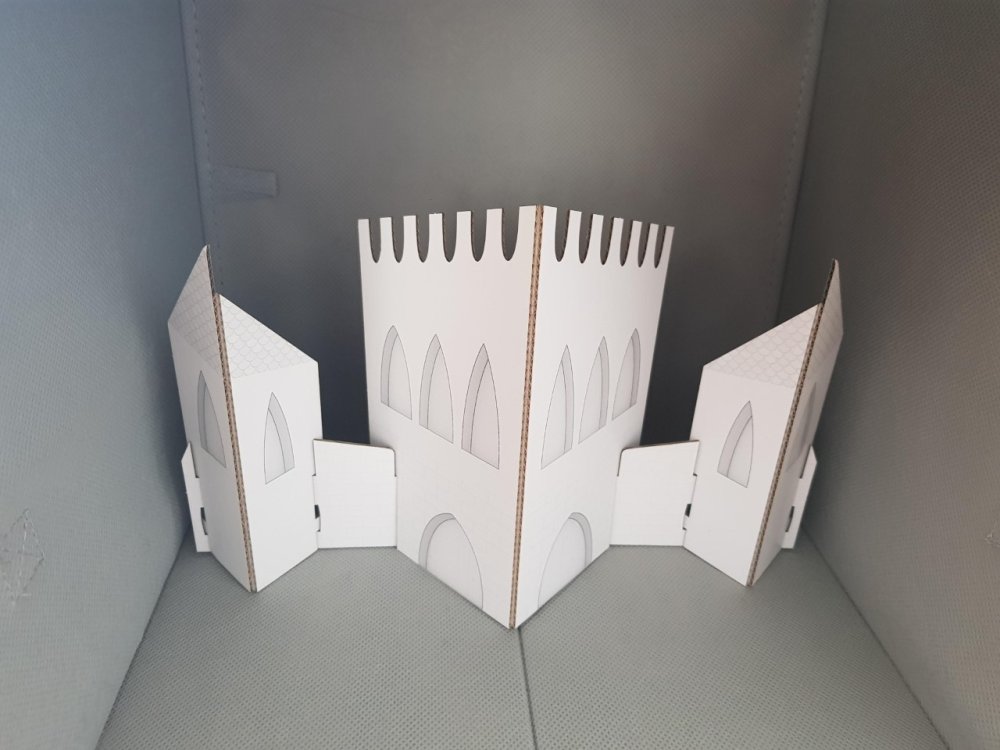

Put the castle inside the mapping box.

Install your video-projector to project on the castle, and follow the architectural mapping tutorial available in English and French.
