Perform the autocalibration

*Before moving forward, we remind you that all lights – natural or artificial – need to be turned off or hidden.
Indeed, any reflection in the room can mar the autocalibration operation.

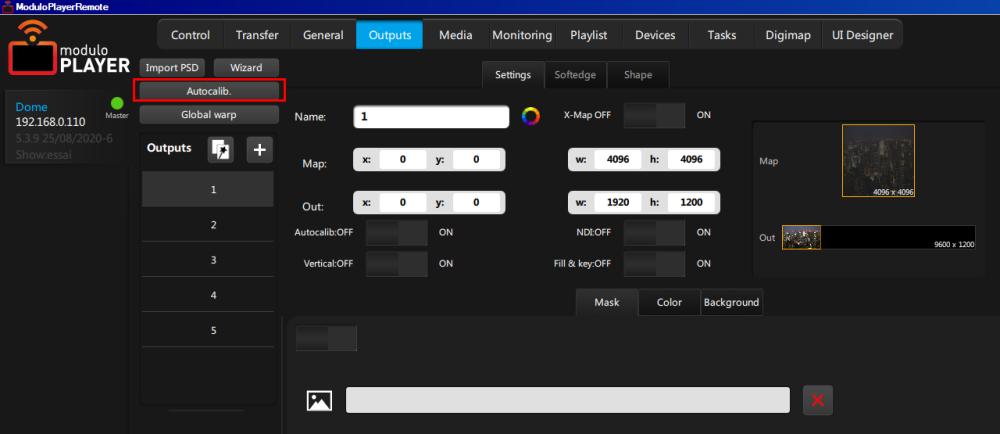

On the Output page click on Autocalib.

The autocalibration process has 10 clear steps, click on Next when you get ready.

Step 2: Create a group of projectors

• Add a Group, you can rename it
• Select it to highlight the group and click on Next

Step 3: Add Outputs to the group

• Drag & Drop each output from the right part to the left part which is the Group
• When it’s done, click on Next

*In our dome projection case, we only have one Blend group.
Multiple Blend groups is only needed for stack projections.

Step 4: Assign the camera

• On the right side, you should see the camera we prepared
• Drag & drop the camera from the right side to the left side called “Current Camera”
• Click on Next

*If you don’t see the camera at this point, please save and close Modulo Player Remote. Then go back to the previous chapter to configure the camera.

Step 5: Adjust the camera position and its aperture

• This window gives you a middle cross to set the camera position/orientation in the center of the dome
• You can check again as well if your projectors have enough overlapping area between each other
• Adjust the aperture on the camera to get the best contrast (not too bright, not too dark)
• If needed, move the Exposure cursor to be more precise. This parameter needs to remain an additional setting to the aperture setting

!Adjust the GAIN value only in very low-light situations, otherwise we suggest you to let this parameter to its default value 2.

• Adjust the Image crop parameters to fit to the area of interest of the projection surface

*Adjusting the Image crop parameters will reduce the calibration duration, and save disk space while taking pictures of the camera.

Step 6: Adjust the Pattern size that will be used for the calibration

• Depending of your projection distance and the projection surface dimension, you will need to adjust this parameter
• Usually, we recommend to move the cursor until you get around 20 points per projector

*Pattern size is a crucial parameter to optimize the calibration results. We will see that we can adjust it later to improve the results.

Step 7: Select your projection surface type, and degree of Deformation

• In this exercise, we project on a dome so we chose this type here
• For the Deformation tolerance, we usually start with the default value which is Normal

• Depending of the result of the first calibration, we could increase the Deformation tolerance to High for a second calibration

Step 8: Define the mask around the projection surface

• Use the tool + to add points around the surface
• To achieve a curved surface like our dome, hold down the click and drag the fader in the required direction to create a curved shape

• Then, you can adjust/move these points thanks to the other tools of the panel

Step 9: Adjust the Binarization threshold to make it indicate in blue what the projector sees

• Adjusting the Binarization threshold defines what the calibration will consider on the picture for each projector

*Usually, if the Exposure parameter on Step 5 has been well set up, you will not need to adjust a lot the Binarization threshold parameter.

• The blue color represents what each projector can project on the dome. Basically, we need to fill in blue what the projector sees.

*If at this point, you cannot get a good result while adjusting the Binarization threshold, you may need to go back to step 5, and adjust the Exposure parameter.

Step 10: Autocalibration is running

!Before launching the autocalibration, be sure nothing will disturb: No undesirable lights, nothing moving in front of the camera.

• In this final step, Modulo Player Remote displays pictures on each projector, one by one
• The camera records these pictures
• At the end of this step, a Success pop-up will appear. Click OK

• All the projectors of your group should now be calibrated

How to adjust the perspective of the calibration deformation?

Once the calibration is done, you might need to warp the entire picture of your group of projectors.

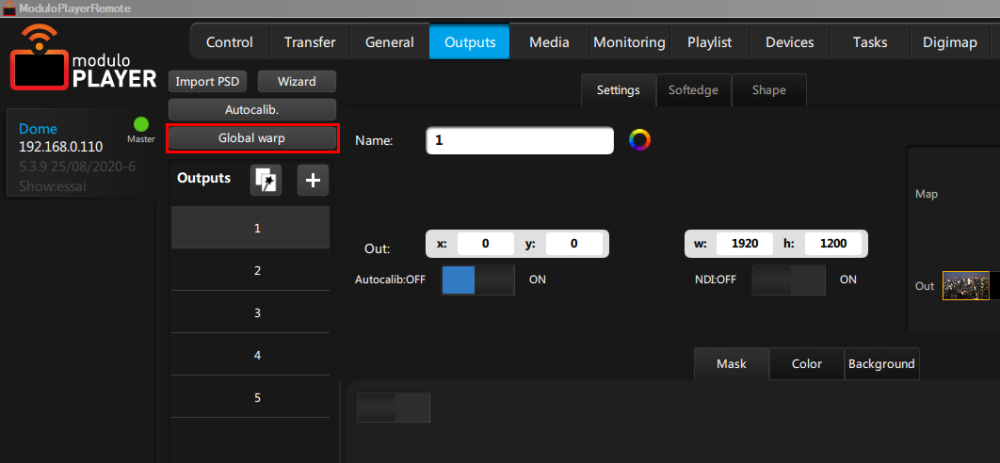

• To do so, click on Global Warp


• Go to the Shape tab, and click on ON in order to enable the warping

• As you use to do with usual warping, you can click on Configuration to add columns and rows if needed
