You can use a Deltacast capture card in order to capture a HDMI or HD-SDI, on SDI, DVI video stream. You can handle it as a media.

For HD-SDI input board type:
Configure settings in order to display media from the acquisition cards.
• Name: Assign a name in order to find it easily on the media list
• Input: Choose your SDI source
• Width: Stream width
• Height: Stream height
• Framerate: Number of images per second
• Deinterlace: Select between Top or Bottom Field to deinterlace the signal
Click on Autosetup to automatically configure your sources. Once the signal is set, the indication becomes from red to green.
Via this function, the source’s width/ height, framerate and deinterlacement is set.

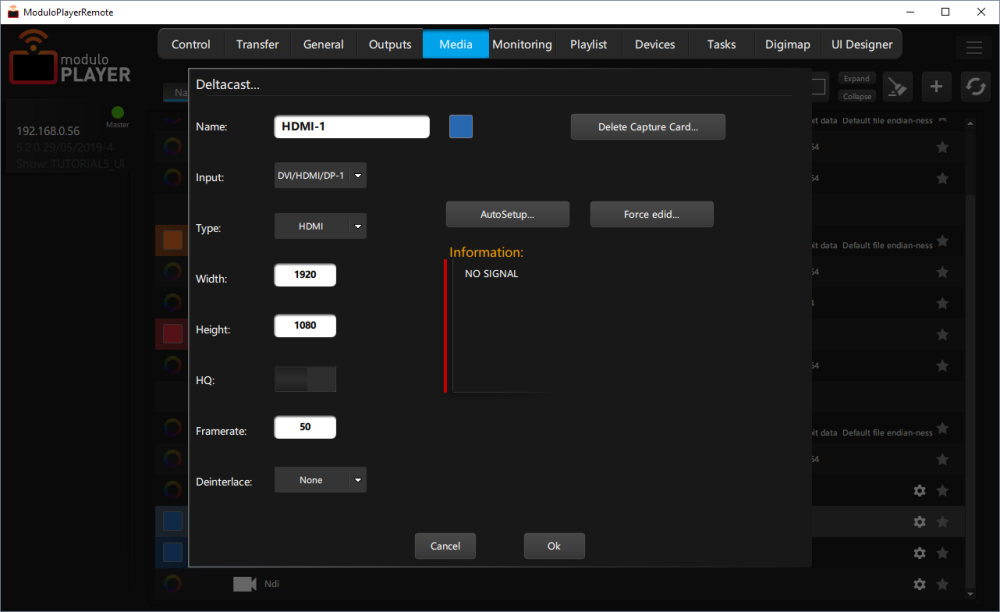

For HDMI input board type:
• Name: Assign a name to the media to find it easily on the media list
• Input: Choose your output DVI/HDMI source
• You can force the EDID of the HDMI input source directly in Modulo Player. To do so, click on the force EDID button and select the appropriate EDID for the incoming signal.
Once you click Apply, the computer (input source) will flash briefly. Once the EDID forced, a green notice will appear for some seconds confirming that the EDID was loaded with success. Click on Back to return to the deltacast window, and click on Autosetup.
• Click on Autosetup to automatically configure your sources. Once the signal is set, the indication becomes from red to green.
NB: This function will autoset input type, width and height, HQ option, framerate and deinterlacement.
Type: Choose the input type (depending on source connected)
• Width: Stream width in pixels
• Height: Stream height in pixels
• H.Q: Allows to switch the DVI capture card from YUV quality mode to RGB quality
mode.
• Framerate: Number of images per second
• Deinterlace: Signal deinterlacement

USER EDID :If the EDID is not already in the list you can copy it manually to the Server’s Documents > Modulo Player > deltacast_edid folder and use them in the user tab.

Click on «delete capture card» button if you want to remove it from the Media list.
