Description

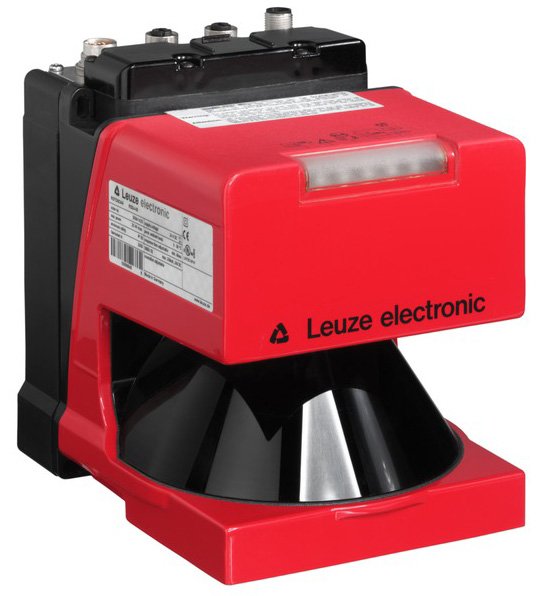

The Rod 4 is a contactless laser distance sensor for area-scanning object detection and measurement.
A light beam produced by laser diodes is deflected by a rotating mirror and covers an area of 190° with a radius of up to 65 m.
Settings
| Property | Default | Description |
|---|---|---|
| Name | Leuze Rod 4 | User-friendly name. |
| Enable | ON | Activate to enable the device. |
| Run at startup | ON | Activate to enable the device at Kinetic startup. |
| IP | empty | Enter the IP address of your device. Your device and Kinetic Designer should be on the same subnet. |
| Port | 9008 | TCP/IP port used by the device. Do not change unless you know what you are doing. |
| Minimum points to create a Cluster | 2 | A cluster is a group of close points which have a position that will be tracked . This setting can help to reduce noise. |
| Cluster Expiration Time (ms) | 300 | Time before a cluster is dropped when it is not detected anymore. |
| Maximum Clustering Distance (mm) | 100 | Threshold for points close together to be considered as one cluster. |
| Tracking Move Threshold (mm) | 5 | Threshold under which movement is not considered movement but eliminated as noise. |
| Maximum Matching Distance (mm) | 600 | Threshold over which a cluster can’t be matched as being the same cluster after a movement. |
| Process noise covariance (mm) | 1.0 | Error expected on position evaluation. |
| Measure noise covariance (mm) | 5.0 | Error expected on position measurement. |
| Positioning Algorithm | Centroid | Method to describe the position of a cluster. |
| Bounding Box | OFF | Enable bounding box. |
Task action
| Action | Description |
|---|---|
| Enable | Enable the device. |
| Disable | Disable the device. |
| Start Record | Start a recording with the device. |
| Stop Record | Stop the recording with the device. |
| Start Playback | Start a playback of a recording with the device. |
| Stop Playback | Stop any playback currently playing. |
Task trigger
This device has no actions that can trigger a Task.
Digimap trigger
N/A
Graph
| Action | Description |
|---|---|
| Detected Cluster Position | Receive detected clustered points by the device |
User interface
This device has no actions that can be launched from the UI designer.
Device information
Go to the manufacturer website for more information.
