This tab lists any dimensions that were created in the current3D scene.
These dimensions are not present in the Hierarchy tab.
Dimensions can be created from within the 3D Viewer panel by using the Dimensions
tool.
When using this tool, a yellow square will appear around the cursor’s position to place the first point of measurement.
Once clicked, a second point can be placed to create a dimension that will be displayed in the 3D Viewer and appear in the Dimensions tab in the 3D Scenes tab.
Options
When using the Dimensions tool, the following options are available in the top part of the 3D Viewer panel:
| Option | Description |
|---|---|
| Snap | Select between None (free placement), Vertex or Bounding Box to constrain the placement of the dimension points |
| Constrain | Toggle to constrain placing the points along the X, Y or Z axes |
In addition, the box displays the Position of the current yellow square as well as the last measure that was taken.
Properties

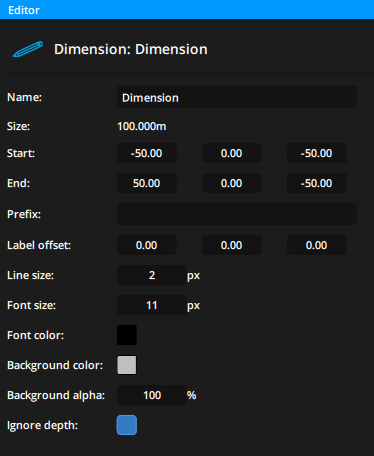

Once a dimension has been created in the 3D Viewer panel, it appears in the Dimensions tab and when selected, the following options are available in the Editor panel:
| Parameter | Description |
|---|---|
| Name | Change the name of the dimension in the list in the Dimensions tab |
| Size | An indication of the dimension measured. This value cannot be modified manually. |
| Start | Coordinates for the starting point of the dimension. These can be modified. |
| End | Coordinates for the ending point of the dimension. These can be modified. |
| Prefix | A text can be added to prefix the dimension label in the 3D Viewer |
| Label offset | Offset coordinates for the label in the 3D Viewer |
| Line size | Size of the line drawing the dimension |
| Font size | Size of the font used in the label |
| Font color | Color of the font used in the label |
| Background color | Color of the label’s background |
| Background alpha | Transparency value for the label |
| Ignore depth | Toggle to ignore depth values when drawing the dimension. This draws the dimension above other objects when active. |
