Freeze a dynamic input at a chosen instant.

Preview of the Tools > Freeze node


Properties


  • Active : Manually freeze the node from the Editor panel. If something is connected to the Active input this property will be overridden.
    Default : OFF
  • Freeze mode : Set the Freeze mode: Freeze value will conserve the values in the array while Unconnected will empty the array when Freeze is active.
    Default : Freeze Value

Inputs


Name Type Description
Active Boolean Toggle to freeze the input
Value Variant Value to freeze

Outputs


Name Type Description
Value Variant Frozen value if Active is ON. Relay of Value input if Active is OFF

Example

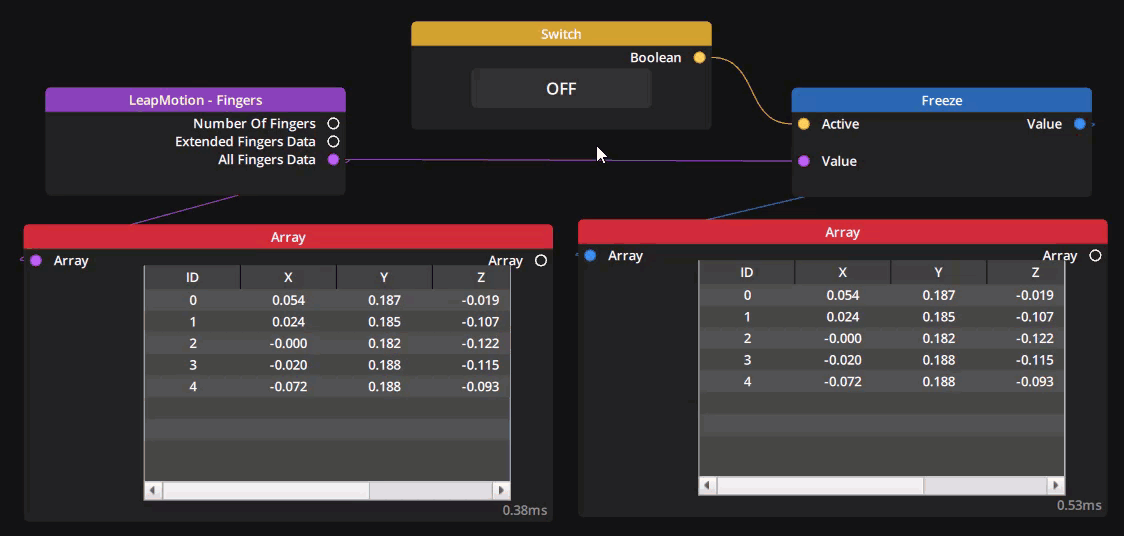

Example of Tools > Freeze node freezing a sensor input
