Extract a section of an array.
It exists in two different versions Extract by Index or Extract by ID.
A pop-up window will appear when you drag & drop this node into your graph letting you select which version you would like to create.

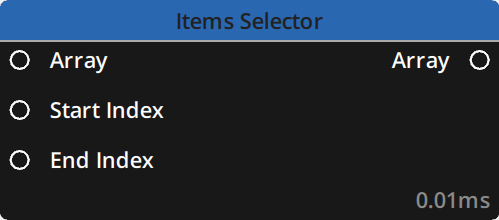

Items Selector by Index
Properties:
Start Index: Manually set the index from which to start the filter
Default : 0
End Index: Manually set the index from which to stop the filter
Default : 0
Inputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Array to filter |
| Start Index | Integer | Index from which to start the filter |
| End Index | Integer | Index from which to stop the filter |
Outputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Resulting array after filtering |

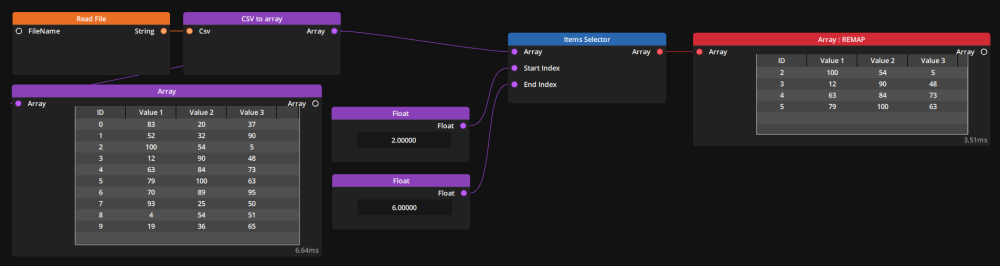

Example
Items Seclector by ID
Properties:
You can add IDs to select by using the
button in the bottom left of the Editor panel and entering the IDs to extract.
Inputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Array to filter |
Outputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Resulting array after filtering |
| ExcludedArray | Array | Rest of the array excluding the values filtered out |

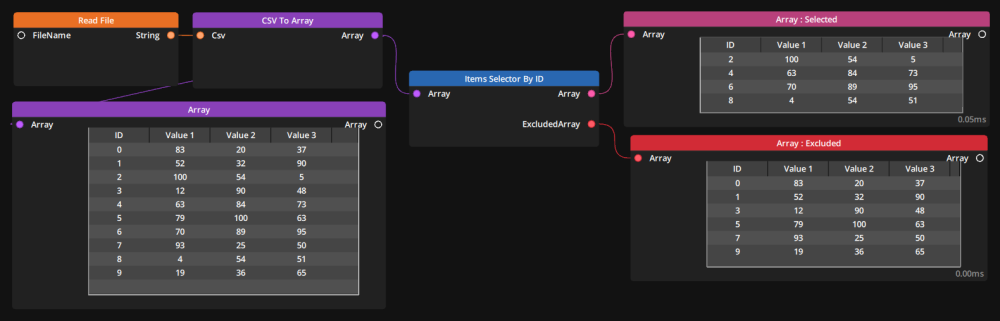

Example
