Isolate a single item from an array and output its data.
This node was designed to isolate tracking beacons in tracking arrays using either an Index, an ID or a Tag. It can still have some use when used with a BlackTrax system which identifies items using a Tag.
Properties
This node has no properties in the Editor panel.
Inputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Array in which to target and isolate an item |
Outputs
| Name | Type | Description |
|---|---|---|
| Array | Array | Outputs an array with only the isolated item and all its properties |
| X | Float | Outputs the X property of the isolated item |
| Y | Float | Outputs the Y property of the isolated item |
| Z | Float | Outputs the Z property of the isolated item |
| RotX | Float | Outputs the RotX property of the isolated item |
| RotY | Float | Outputs the RotY property of the isolated item |
| RotZ | Float | Outputs the RotZ property of the isolated item |
| Valid | Boolean | true if there is a value being extracted, false otherwise |

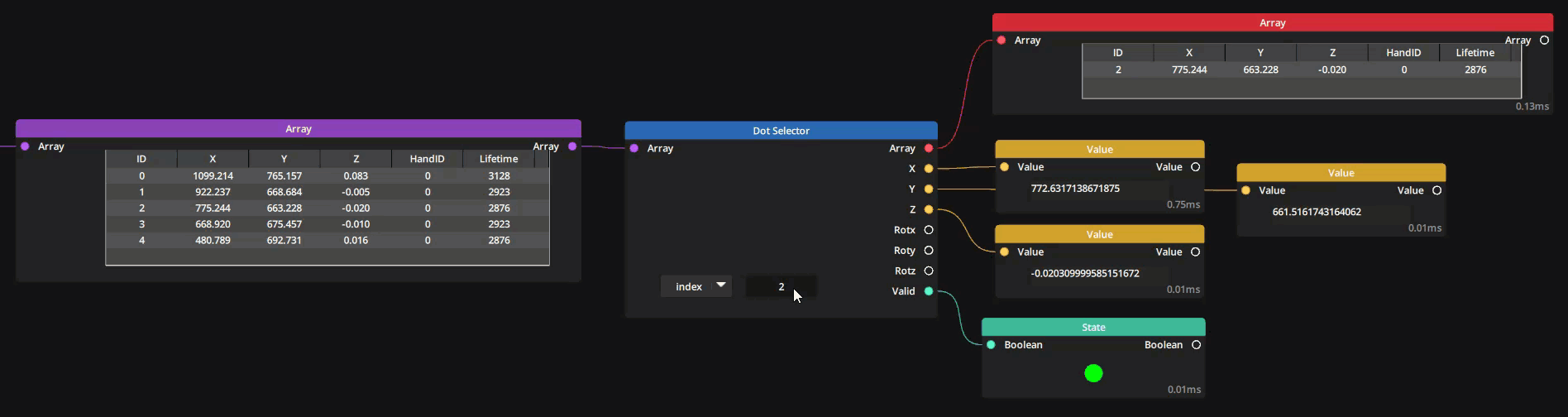

Example
