Description

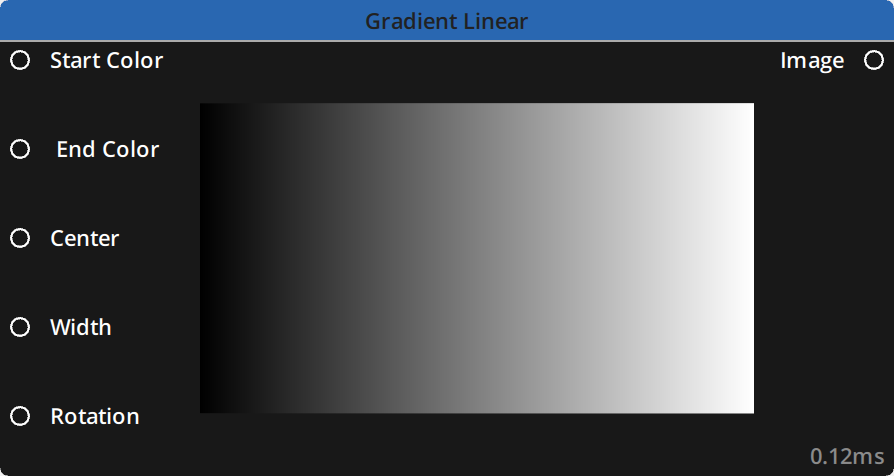

This node generates a linear gradient between two colors.
Properties
Start Color: Set the first color for the gradient.
Default : Black : 0 / 0 / 0 / 255
End Color: Set the second color for the gradient.
Default : White : 255 / 255 / 255 / 255
Center: Set the center point for the gradient.
Default : (WIDTH ÷ 2 ; HEIGHT ÷ 2)
Width: Set the width of the gradient.
Default : WIDTH
Rotation: Set an angle to the gradient.
Default : 90
Inputs
| Name | Type | Description |
|---|---|---|
| Start Color | Color | Input for the first color |
| End Color | Color | Input for the second color |
| Center | Vector 2D | Center point for the gradient |
| Width | Float | Width of the gradient |
| Rotation | Float | Angle of the gradient |
Outputs
| Name | Type | Description |
|---|---|---|
| Image | Image | Image output of the gradient |

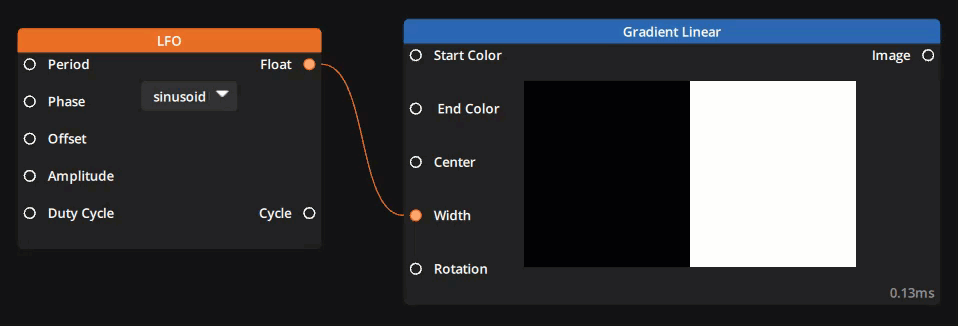

Example
In this example :
Width: Animated using an LFO between 0 and 1920.
All other values are left at default.
