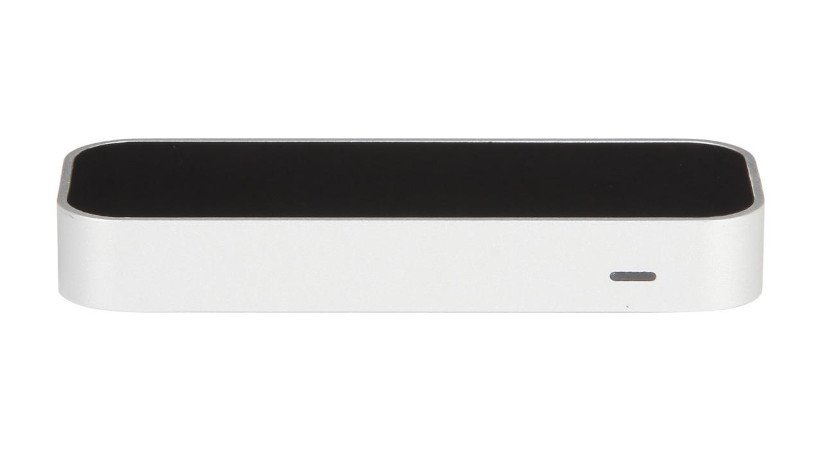

The Leap Motion Controller is a small and lightweight sensor designed by UltraLeap to track hand and finger movements using a built-in infrared camera.
It can detect hand and finger movements up to 110cm from the device (Leap Motion Controller 2), with an optimal range between 10 and 90cm and connects to the setup via USB.
Drivers
Leap Motion Controller 2
| |
Install the Hyperion Software v.6.0.0 |
Leap Motion Controller (legacy)
 |
Install the Gemini Software v.5.20.0 |
Settings
| Property | Default | Description |
|---|---|---|
| Name | LeapMotion | User-friendly name |
| Enable | ON | Activate to enable the device. |
| Run at startup | ON | Activate to enable the device at Kinetic startup. |
Task action
This device has no actions that can be launched from a Task.
Task trigger
| Action | Description |
|---|---|
| Swipe Right | Triggers the task if a user swipes right |
| Swipe Left | Triggers the task if a user swipes left |
| Swipe Up | Triggers the task if a user swipes up |
| Swipe Down | Triggers the task if a user swipes down |
| Pull | Triggers the task if a user pulls his hand backwards |
| Push | Triggers the task if a user pushes with his hand |
| Open hand | Triggers the task if a user has his hand open over the sensor at a certain grab angle |
| Closed hand | Triggers the task if a user has his hand closed over the sensor |
| Pinch | Triggers the task if a user pinches with his fingers |
Digimap trigger
This device has no actions that can trigger a Digimap.
Graph
| Action | Description |
|---|---|
| Swipe Right | Sends a trigger if a user swipes right |
| Swipe Left | Sends a trigger if a user swipes left |
| Swipe Up | Sends a trigger if a user swipes up |
| Swipe Down | Sends a trigger if a user swipes down |
| Pull | Sends a trigger if a user pulls his hand backwards |
| Push | Sends a trigger if a user pushes with his hand |
| Open hand | Continuously sends a trigger if a user has his hand open over the sensor |
| Closed hand | Continuously sends a trigger if a user has his hand closed over the sensor |
| Pinch | Sends a trigger if a user pinches with his fingers |
| Hands | Outputs hand position data in the form of an array. |
| Fingers | Outputs finger position data in the form of an array. |
User interface
This device has no actions that can be launched from the UI designer.
Device information
Go to the manufacturer website for more information.
