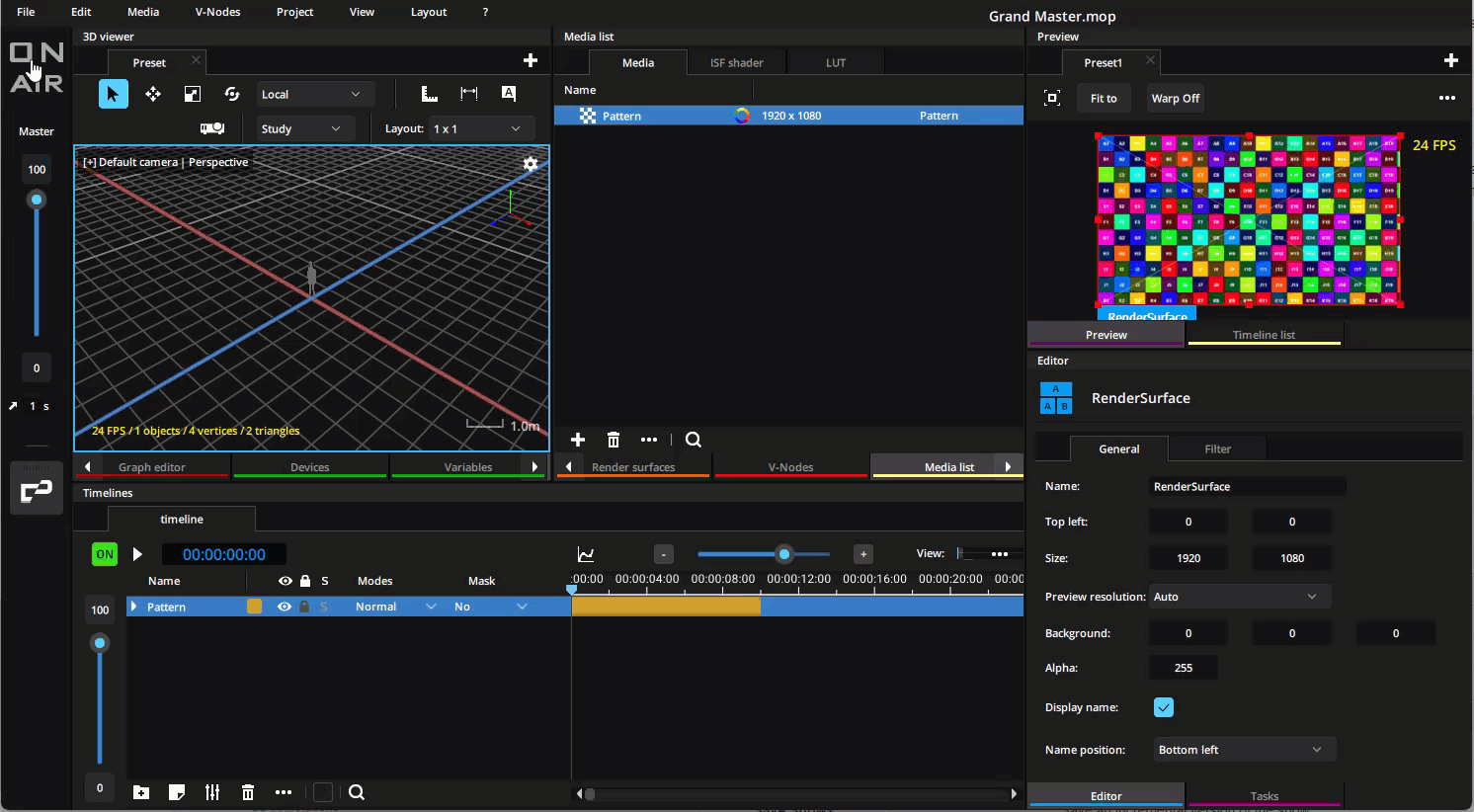

ON AIR button
Toggle the ON AIR button to deactivate all rendering (2D preview, 3D scenes) in the Modulo Kinetic Designer to dedicate all ressources to show control for a more smooth operating experience.
Grand master fader
The slider controls the global opacity of the rendering of all Kinetic V-Nodes. You can click on the 0 button to smoothly fade to black and click on the 100 to smoothly fade to full opacity. You can control the duration (in seconds) of these 0 to 100 fade transition using the dedicated field underneath the fader.
Kinetic Designer Button
This button can be drag & dropped in various areas to perform a wide variety of “special” actions.
In a task as a subcommand or in the command layer of a timeline
| Action | Description |
|---|---|
| GrandMaster value | Change the value of the grand master (between 0 et 100) and the duration of the transition |
| Online | Send an online command to all V-Nodes |
| Offline | Send an offline command to all V-Nodes |
| Send Show Control string | Send an ASCII string to all connected show controls |
| Power Off Designer | Power Off the Kinetic Designer Workstation |
| Reboot Designer | Reboot the Kinetic Designer Workstation |
| Quit Designer | Quit the Kinetic Designer application |
| Load Workspace | Loads a specific workspace layout |
| Enable ON AIR | Enables the ON AIR (see above) |
| Disable ON AIR | Disables the ON AIR (see above) |
| Save Show | Save the show |
| Save Show+ | Save an incremental version of the show |
| Backup Show | Create a backup of the show |
| Reset Offset | Reset all Digimap offsets |
| Rescan Media | Rescan all media (creates thumbnails for new media) |
| Rescan Media -force (slow) | Rescan all media (creates thumbnails for new media) |
| Off all test patterns | Turn off test patterns on every outputs of every V-Nodes |
| Off all control points | Turn off warp control points on every outputs of every V-Nodes |
| Off all X-Map blinds | Turn off the blind for every X-Map of every outputs of every V-Nodes |
| Off all solo X-Map | Turn off the solo for every X-Map of every outputs of every V-Nodes |
| Set Graph On | Turn a graph ON |
| Set Graph Off | Turn a graph OFF |
| Set Camera VR | Sets the VR Camera |
| Send int | Send an int value to all show control applications connected. Select the corresponding ID. |
| Send float | Send a float value to all show control applications connected. Select the corresponding ID. |
| Send double | Send a double value to all show control applications connected. Select the corresponding ID. |
| Send vector 2d | Send a vector 2d value to all show control applications connected. Select the corresponding ID. |
| Send vector 3d | Send a vector 3d value to all show control applications connected. Select the corresponding ID. |
| Send vector 4d | Send a vector 4d value to all show control applications connected. Select the corresponding ID. |
| Send color | Send a color value to all show control applications connected. Select the corresponding ID. |
| Send string | Send a string value to all show control applications connected. Select the corresponding ID. |
| Start record | Starts the recording of a variable’s data flow. Recording must be given a name. |
| Stop record | Stops the recording of a variable’s data flow. Recording is targeted with its name. |
| Start playback | Starts the playback of a recording of a variable’s data flow. Recording is targeted with its name. |
| Stop playback | Stops the playback of a recording of a variable’s data flow. Recording is targeted with its name. |
In a trigger area of a task
You can trigger a task on a slave Kinetic Designer when it looses the connection to the master Kinetic Designer.
In a digimap patch
You can control the grand master in a digimap.
In a trigger area of a digimap
You can use the incoming values sent by a show control applications connected to the Modulo Kinetic Designer:
| Action | Description |
|---|---|
| Received int | Set the ID. |
| Received float | Set the ID. |
| Received double | Set the ID. |
| Received vector 2d | Set the ID and choose the components (x or y). |
| Received vector 3d | Set the ID and choose the components (x or y or z). |
| Received vector 4d | Set the ID and choose the components (x or y or z or w). |
| Received color | Set the ID and choose the components (R,G,B or Alpha). |
| Received string | Set the ID. |
In a compute graph
When drag & dropped into a compute graph, this button can create nodes to either receive value from external show control applications, StreamDeck devices, or VR headsets.
Each node will have a id_startWith input pin (also available as a field in the Editor panel for the node) to filter the value you wish to receive.
| Action | Description |
|---|---|
| Receive integer | Receive an integer value from an external show control application. |
| Receive float | Receive a float value from an external show control application. |
| Receive double | Receive a double value from an external show control application. |
| Receive vector 2d | Receive a 2D vector value from an external show control application. |
| Receive vector 3d | Receive a 3D vector value from an external show control application. |
| Receive vector 4d | Receive a 4D vector value from an external show control application. |
| Receive color | Receive a color value from an external show control application. |
| Receive string | Receive a string from an external show control application. |
| Receive integer with token | Receive an integer value from an external show control application. |
| Receive float with token | Receive a float value from an external show control application. |
| Receive double with token | Receive a double value from an external show control application. |
| Receive vector 2d with token | Receive a 2D vector value from an external show control application. |
| Receive vector 3d with token | Receive a 3D vector value from an external show control application. |
| Receive vector 4d with token | Receive a 4D vector value from an external show control application. |
| Receive color with token | Receive a color value from an external show control application. |
| Receive string with token | Receive a string from an external show control application. |
| Receive StreamDeck key down | Choose the x (column) and y(row) and the id_startWith (name of the StreamDeck in a multi StreamDeck Setup) |
| Receive StreamDeck key up | Choose the x (column) and y(row) and the id_startWith (name of the StreamDeck in a multi StreamDeck Setup) |
| Receive Vr Headset Position | Receive X, Y and Z positions for a VR Headset. |
| Receive Vr Headset Yaw, Picth, Roll | Receive Yaw, Pitch and Roll values for a VR Headset. |
Monitor connected applications
In this panel, icons will appear notifying the number of applications connected to your Kinetic Designer :
• Monitor Warp Remotes
• Monitor Live Mixers
• Monitor Kinetic Panels
• Monitor if there is a Slave Kinetic Designer connected to the Kinetic Master.
• Display any Show Control application connected to the Kinetic Designer (for example a Medialon Manager or a Crestron show control) if there are any.
