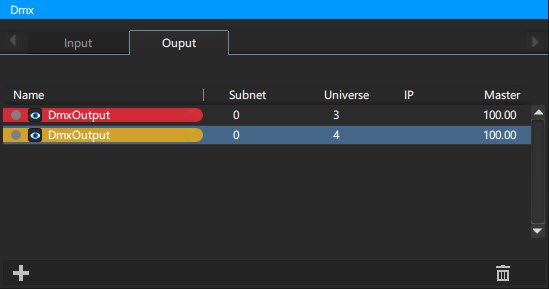

DMX Output

Click on or double click	add a dmx output
Click on icon	delete a dmx output

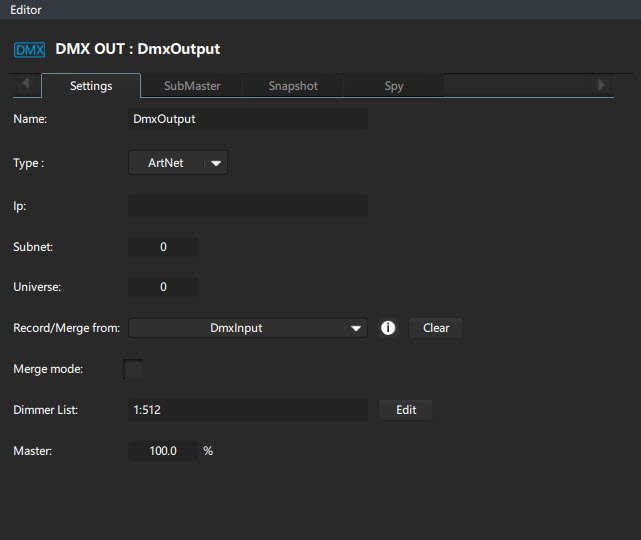

Settings tab

Select the DMX output you want to edit.

* * use the Edit button to set the Dimmer List

Dimmer List Editor

	Click one time to set a 8bit dimmer
	Click two time to set a16bit dimmer
All	Select all DMX channels
None	Unselect all DMX channels
Invert	Invert the selection

SubMaster tab

Click on or double click	add a SubMaster group
Click on icon	delete a SubMaster group
Name	You can change the SubMaster’s name
DimmerList	Choose which DMX channels you want to control*
Master	Set the SubMaster opacity

* * use the Edit button to set the Dimmer List

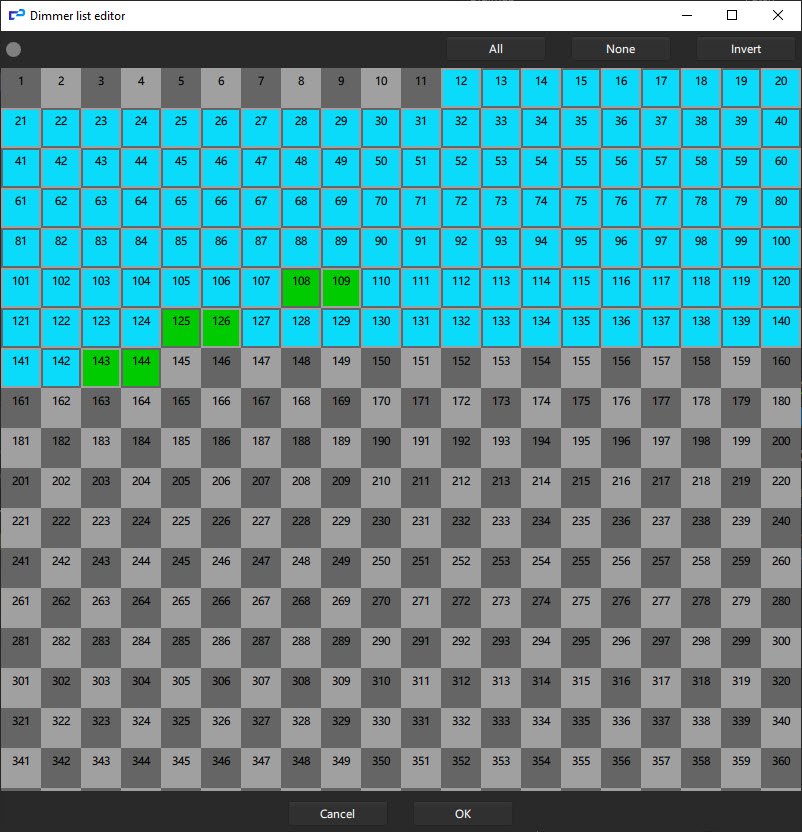

Dimmer List Editor

	Click one time to set a 8bit dimmer
	Click two time to set a16bit dimmer
All	Select all DMX channels
None	Unselect all DMX channels
Invert	Invert the selection

!To avoid conflicts, all 8-bit and 16-bit dimmers must be declared first in the Settings/Dimmer List tab.

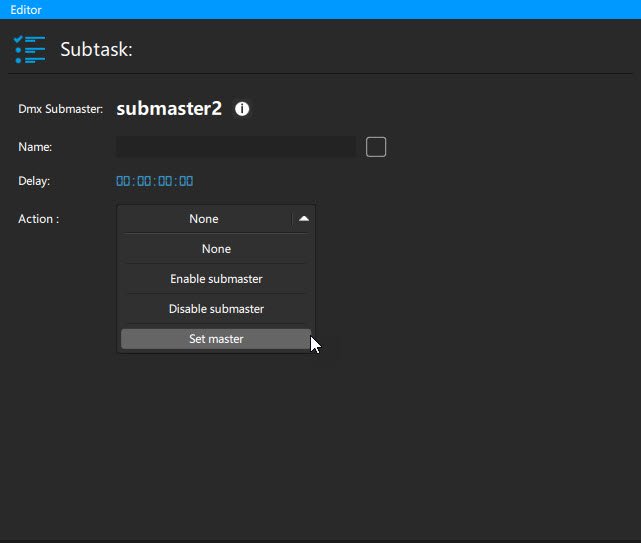

You can drag & drop a Submaster in:
A Timeline layer

A Subtask

Snapshot

Click on or double click	add a Snapshot
Click on icon	delete a Snapshot
Click on icon	record the selected DMX input
Click on icon	play the recorded snapshot
Range	enter the desired DMX channel range*

* * use the Edit button to set the Range List

Range Editor

	Click to select a channel
All	Select all DMX channels
None	Unselect all DMX channels
Invert	Invert the selection

You can drag & drop a Snapshot in a subtask:

Spy tab

You can visualize the sent dmx values.

You can drag& drop a DMX Output in:

A subtask or a command layer in a timeline

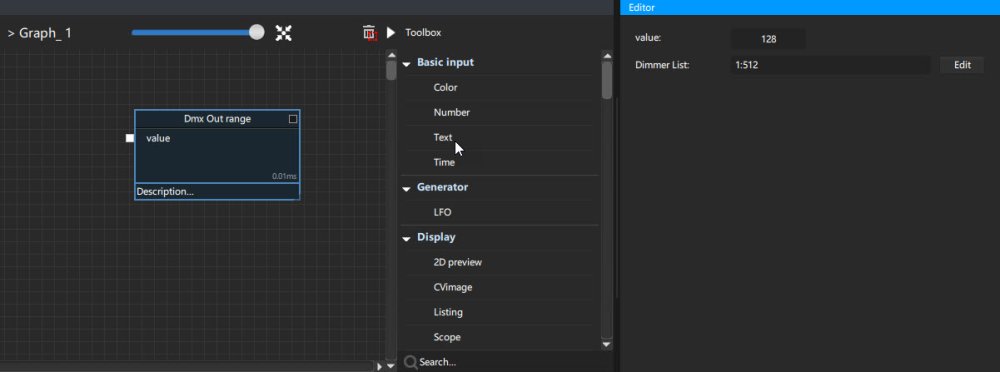

A Graph

Set value on a channel

Set value on a range

	Click one time to set a 8bit dimmer
	Click two time to set a16bit dimmer
All	Select all DMX channels
None	Unselect all DMX channels
Invert	Invert the selection

Set master

A timeline layer

*To record a DMX universe, click on button. The record start when you play the timeline and stop if you stop the timeline or go out of the layer.
