VNC Client

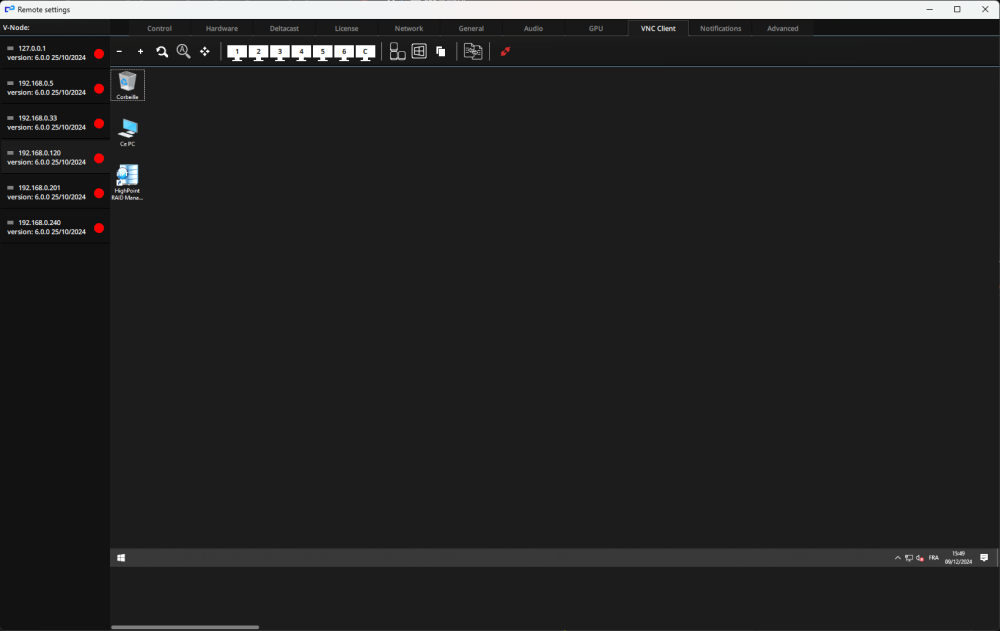

Kinetic Designer integrates a VNC Client directly inside the interface via the V-Nodes top menu.

The section on the left enables you to select a server on the network.

Once a server is selected, a VNC session will automatically be opened and appear in the window’s preview, under the toolbar.

All mouse interactions happening within the window’s preview will be captured and forwarded to the server’s desktop.

The toolbar on the top gives access to the following options:

Icon	Description
	Zoom in
	Zoom out
	Zoom 100%
	Zoom Auto
	View interaction
	Screen 1
	Screen 2
	Screen 3
	Screen 4
	Screen 5
	Screen 6
	Center view
	Send CTRL + ALT + DEL
	Send CTRL + ESC
	Print Screen
	File FTP
	Disconnect

*Note: The View interaction button locks the mouse from VNC, preventing it from being captured and forwarded to the server and enabling you to pan the view. This is handy for very large desktop resolutions.
