CSV to Array

Create an array from a CSV file.

This can be useful if you want to test your graphs by using dummy tables that can be quickly created in a spreadsheet and saved to CSV file.

*Info : CSV stands for Comma Separated Values and describes a plain text file where data from a table is stored line per line and fields are separated using commas (,) or semicolons (;).
In most european countries the semicolon is preferred as a separator because the comma is used inside numbers to separate the digits from the decimals.

*Note : As with all data coming from an outside source, the file that is being read is continuously monitored and any changes made to that file will appear immediately in Kinetic Designer.

Properties

• CSV separator character : Set the character being used to separate values.
  Default : ,

Inputs

Outputs

Formatting

The CSV file must be formatted in the following matter :

The first line contains the properties of the array, separated by a comma ,.

Every other line contains a single item of the array, with the values for the properties also separated by a comma ,.

The data must all be contained in a single column.

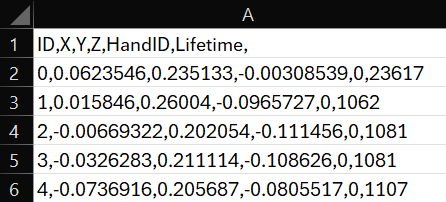

For example, this formatted CSV:

will result in the following array:

*Note: The comma , is the default separator used by the CSV to Array but can be changed to a semicolon ; if desired.
